D46TQ2, D46TQ1 NPN POWER TRANSISTORS

D46TQ2 Description

HIGH SPEED NPN POWER TRANSISTORS D46TQ1 D46TQ2 400-450 VOLTS 12 AMP, 110 WATTS The D46TQ1 and D46TQ2 are designed for high-voltage, high-speed power.

D46TQ2 Features

* VCEO(sus} 400V and 450 V
* 700 V blocking capability
* SOA and switching information. NPN COLLECTOR EMITTER CASE STYLE TO-218 DIMENSIONS ARE IN INCHES AND (MILLIMETERS) .156(3.961 MIN. .461(11.7091 00+.1-4-7-1L3.7341~~==;==;=;"" MAX. ~ 12 3 1.622(15.798) ~p.048(1

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: D46TQ2, D46TQ1. Please refer to the document for exact specifications by model.

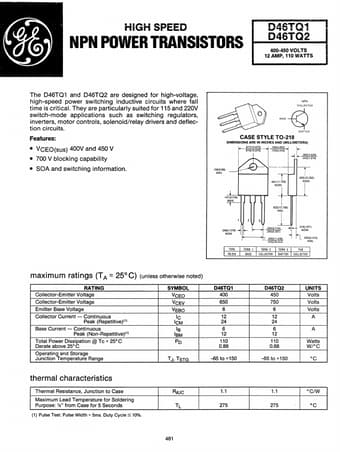

datasheet Preview Page 2

Datasheet Details

Part number
D46TQ2, D46TQ1
Manufacturer
GE
File Size
122.49 KB
Datasheet
D46TQ1-GE.pdf
Description
NPN POWER TRANSISTORS
Note
This datasheet PDF includes multiple part numbers: D46TQ2, D46TQ1.
Please refer to the document for exact specifications by model.
