Datasheet Details
Part number:
SF38, SF31
Manufacturer:
GALAXY ELECTRICAL
File Size:
303.07 KB
Description:
Super fast rectifiers.
Note:
This datasheet PDF includes multiple part numbers: SF38, SF31.
Please refer to the document for exact specifications by model.

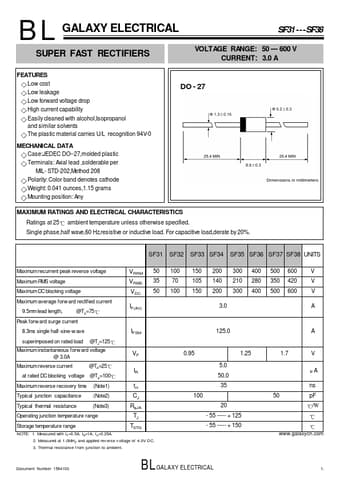

SF38 Features
* Low cost Low leakage Low forward voltage drop High current capability Easily cleaned with alcohol,Isopropanol and similar solvents The plastic material carries U/L recognition 94V-0 MECHANICAL DATA Case:JEDEC DO
* 27,molded plastic Terminals: Axial lead ,solderable per MIL- STD-202,Method 208
