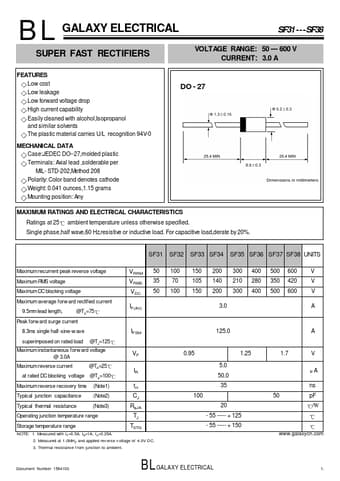

BL GALAXY ELECTRICAL
SUPER FAST RECTIFIERS
SF31---SF38
VOLTAGE RANGE: 50 --- 600 V CURRENT: 3.0 A
FEATURES Low cost Low leakage Low forward voltage drop High current capability Easily cleaned with alcohol,Isopropanol and similar solvents The plastic material carries U/L recognition 94V-0
MECHANICAL DATA Case:JEDEC DO--27,molded plastic Terminals: Axial lead ,solderable per MIL- STD-202,Method 208 Polarity: Color band denotes cathode Weight: 0.041 ounces,1.15 grams Mounting position: Any
DO - 27
Dimensions in millimeters
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 ambient temperature unless otherwise specified. Single phase,half wave,60 Hz,resistive or inductive load. For capacitive load,derate by 20%.
