GS8091 - 350MHZ CMOS Rail-to-Rail Output Opamps

Description

The GS8091/1N(single), GS8092/2N(dual), GS8094(quad) are rail-to-rail output voltage feedback amplifiers offering ease of use and low cost.

They have bandwidth and slew rate typically found in current feedback amplifiers.

Features

  • Single-Supply Operation from +2.5V ~ +5.5V.
  • Rail-to-Rail Output.
  • -3dB Bandwidth(G=+1): 350MHz (Typ).
  • Low Input Bias Current: 1pA (Typ).
  • Quiescent Current: 4.2mA/Amplifier (Typ).
  • Operating Temperature: -40°C ~ +125°C.
  • Small Package: GS8091 Available in SOT23-5 and SC70-5 Packages GS8092 Available in SOP-8 and MSOP-8 Packages GS8094 Available in SOP-14 and TSSOP-14 Packages GS8091N Available in SOT23-6 and SC70-6 Packages GS8092N Av.

📥 Download Datasheet

Datasheet Details

Part number GS8091
Manufacturer GAINSIL
File Size 1.55 MB
Description 350MHZ CMOS Rail-to-Rail Output Opamps
Datasheet download datasheet GS8091 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GS809C Microprocessor Reset Monitors Vishay Siliconix
GS8000 DVI / HDMI Extender Gennum Corporation
GS81032AT 32K x 32 / 1M Synchronous Burst SRAM GSI Technology
GS810C Microprocessor Reset Monitors Vishay Siliconix
GS8128018RT Rad-Tolerant SRAM GSI Technology

Other Datasheets by GAINSIL

Part Number Description
GS8091N 350MHZ CMOS Rail-to-Rail Output Opamps
GS8092 350MHZ CMOS Rail-to-Rail Output Opamps
GS8092N 350MHZ CMOS Rail-to-Rail Output Opamps
GS8094 350MHZ CMOS Rail-to-Rail Output Opamps
GS8041 14.5KHZ CMOS Rail-to-Rail I/O Opamp

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

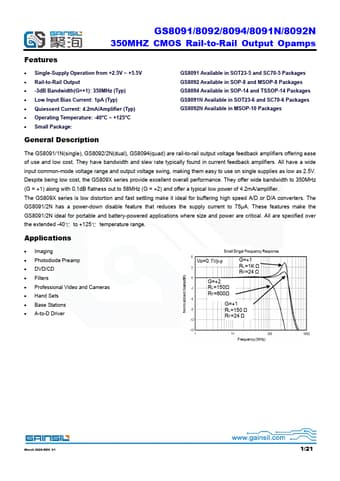

GS8091/8092/8094/8091N/8092N 350MHZ CMOS Rail-to-Rail Output Opamps Features • Single-Supply Operation from +2.5V ~ +5.5V • Rail-to-Rail Output • -3dB Bandwidth(G=+1): 350MHz (Typ) • Low Input Bias Current: 1pA (Typ) • Quiescent Current: 4.2mA/Amplifier (Typ) • Operating Temperature: -40°C ~ +125°C • Small Package: GS8091 Available in SOT23-5 and SC70-5 Packages GS8092 Available in SOP-8 and MSOP-8 Packages GS8094 Available in SOP-14 and TSSOP-14 Packages GS8091N Available in SOT23-6 and SC70-6 Packages GS8092N Available in MSOP-10 Packages General Description The GS8091/1N(single), GS8092/2N(dual), GS8094(quad) are rail-to-rail output voltage feedback amplifiers offering ease of use and low cost. They have bandwidth and slew rate typically found in current feedback amplifiers.
