GS321 - 1MHZ CMOS Rail-to-Rail IO Opamp

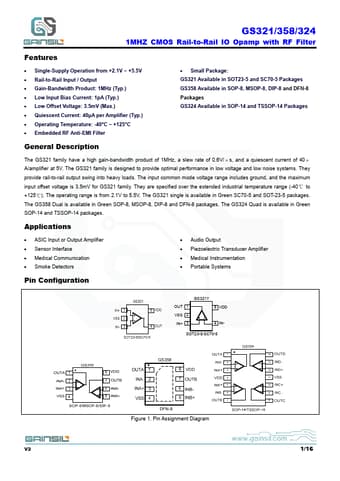

GS321 Datasheet Preview — Preview of GS321 PDF

Datasheet Details

Part number	GS321
Manufacturer	GAINSIL
File Size	694.50 KB
Description	1MHZ CMOS Rail-to-Rail IO Opamp
Datasheet	GS321-GAINSIL.pdf

GS321 Product details

Description

μ μ The GS321 family have a high gain-bandwidth product of 1MHz, a slew rate of 0.6V/ s, and a quiescent current of 40 A/amplifier at 5V.The GS321 family is designed to provide optimal performance in low voltage and low noise systems.They provide rail-to-rail output swing into heavy loads.The input common mode voltage range includes ground, and the maximum ℃ input offset voltage is 3.5mV for GS321 family.They are specified over the extended industrial temperature range (-40 to ℃ +125 ).The

Features

Single-Supply Operation from +2.1V ~ +5.5V.
Rail-to-Rail Input / Output.
Gain-Bandwidth Product: 1MHz (Typ. ).
Low Input Bias Current: 1pA (Typ. ).
Low Offset Voltage: 3.5mV (Max. ).
Quiescent Current: 40µA per Amplifier (Typ. ).
Operating Temperature: -40°C ~ +125°C.
Embedded RF Anti-EMI Filter.
Small Package: GS321 Available in SOT23-5 and SC70-5 Packages GS358 Available in SOP-8, MSOP-8, DIP-8 and DFN-8 Packages G.
