MB81C51 - CMOS TAG RANDOM ACCESS MEMORY

The MB81C51 by Fujitsu is a CMOS TAG RANDOM ACCESS MEMORY. Below is the official datasheet preview.

📥 Download Datasheet

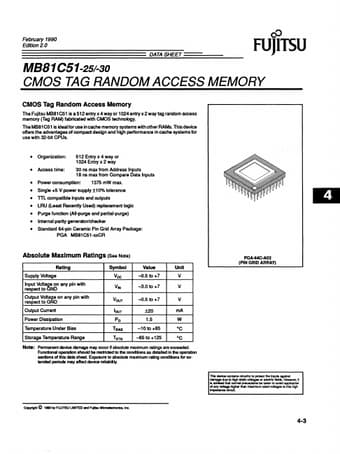

Official preview page of the MB81C51 CMOS TAG RANDOM ACCESS MEMORY datasheet (Fujitsu).

Datasheet Details

Part number MB81C51
Manufacturer Fujitsu
File Size 719.67 KB
Description CMOS TAG RANDOM ACCESS MEMORY
Datasheet download datasheet MB81C51-Fujitsu.pdf
Additional preview pages of the MB81C51 datasheet.

MB81C51 Product details

Description

OUTPUTS HIT HCn/RCn HITn/REPn PERR MHIT HIT OUTPUT."NOR" OF HITO TO HIT3 CODED OUTPUTS OF HIT OR REPLACE INFORMATION ( n = 0 - 1 ) UNCODED OUTPUTS OF HIT OR REPLACE INFORMATION ( n = 0 - 3 ) PARITY ERROR HIT OUTPUT MODIFIED BY MHENBL AND EXTH INPUTS MODE AO-A9 TDO-19 PURGE INVL SBLK SBO, SBI WRITE SET INH H/R RLATCH PINV VINV MHENBL EXTH MODE SELECTION MODE = 1 : 512 Entry x 4 Way MODE = 0: 1024 Entry x 2 Way ADDRESS INPUTS (A9 Is not used for 4 way) TAG INFORMATION INPUTS ALL-PURGE TIMIN
