MBM29PL12LM - FLASH MEMORY 128 M (16M x 8/8M x 16) BIT

Product Overview

Fujitsu Media Devices

Part number	MBM29PL12LM
Manufacturer	Fujitsu Media Devices
File Size	1.01 MB
Description	FLASH MEMORY 128 M (16M x 8/8M x 16) BIT
Datasheet	MBM29PL12LM Datasheet
Additional preview pages of the MBM29PL12LM datasheet.

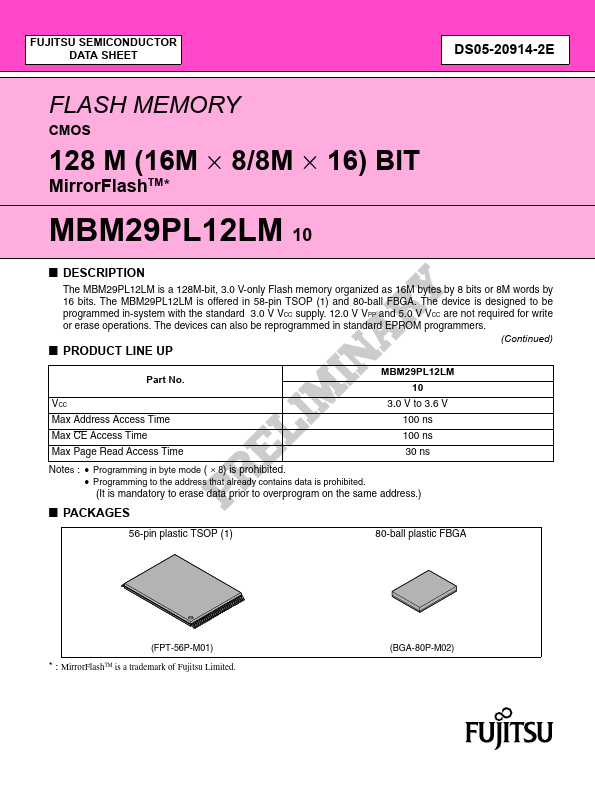

The MBM29PL12LM is a 128M-bit, 3.0 V-only Flash memory organized as 16M bytes by 8 bits or 8M words by 16 bits. PRODUCT LINE UP Part No.VC

br>.

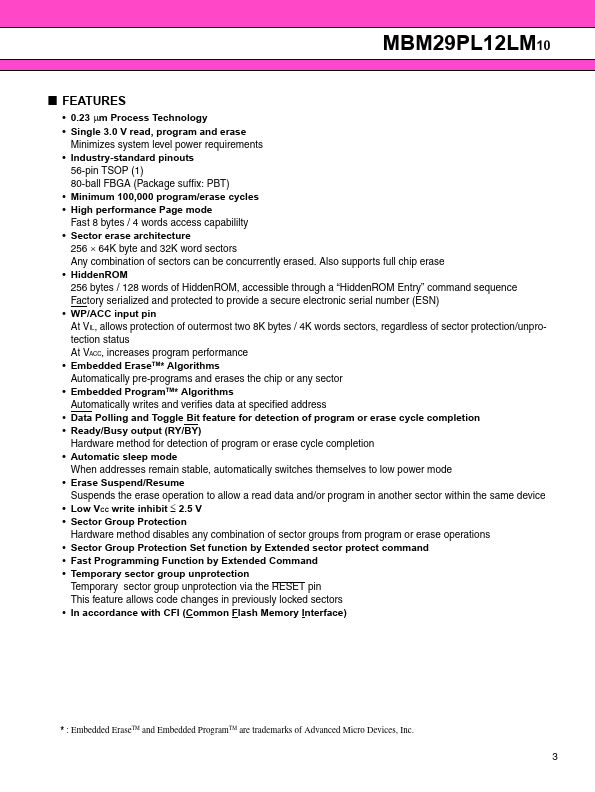

0.23 µm Process Technology.
Single 3.0 V read, program and erase Minimizes system level power requirements.
Industry-standard pinouts 56-pin TSOP (1) 80-ball FBGA (Package suffix: PBT).
Minimum 100,000 program/erase cycles.
High performance Page mode Fast 8 bytes / 4 words access capabililty.
Sector erase architecture 256 × 64K byte and 32K word sectors Any combination of sectors can be concurrently erased. Also supports full chip erase.
