MBM29F002TC - 2M (256K x 8) BIT FLASH MEMORY

Fujitsu Media Devices

The MBM29F002TC by Fujitsu Media Devices is a 2M (256K x 8) BIT FLASH MEMORY. Below is the official datasheet preview.

Datasheet Details

Part number	MBM29F002TC
Manufacturer	Fujitsu Media Devices
File Size	461.15 KB
Description	2M (256K x 8) BIT FLASH MEMORY
Datasheet	MBM29F002TC_FujitsuMediaDevices.pdf

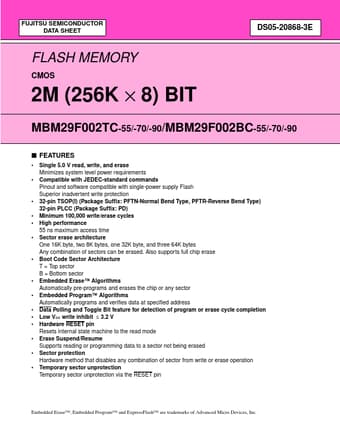

Additional preview pages of the MBM29F002TC datasheet.

The MBM29F002TC/BC is a 2 M-bit, 5.0 V-Only Flash memory organized as 256K bytes of 8 bits each.

Single 5.0 V read, write, and erase Minimizes system level power requirements Compatible with JEDEC-standard commands Pinout and software compatible with single-power supply Flash Superior inadvertent write protection 32-pin TSOP(I) (Package Suffix: PFTN-Normal Bend Type, PFTR-Reverse Bend Type) 32-pin PLCC (Package Suffix: PD) Minimum 100,000 write/erase cycles High performance 55 ns maximum access time Sector erase architecture One 16K byte, two 8K bytes, one 32K byte, and.
