MB89170 - (MB89170 - MB89175) 8-bit Proprietary Microcontroller

Product Overview

Fujitsu Media Devices

Datasheet Details

Part number	MB89170
Manufacturer	Fujitsu Media Devices
File Size	626.17 KB
Description	(MB89170 - MB89175) 8-bit Proprietary Microcontroller
Datasheet	MB89170 Datasheet

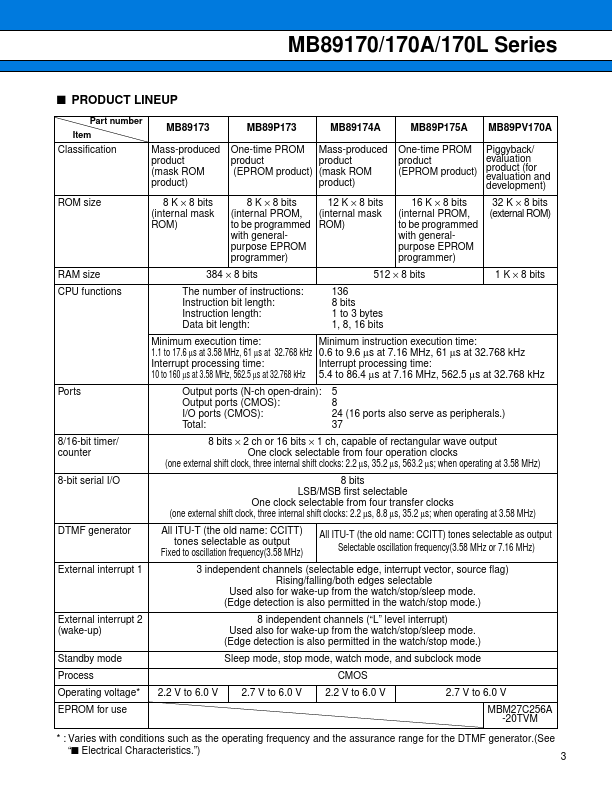

Additional preview pages of the MB89170 datasheet.

Product details

Description

The MB89170/170A/170L series has been developed as a general-purpose version of the F2MC -8L family consisting of proprietary 8-bit, single-chip microcontrollers. : F2MC stands for FUJITSU Flexible Microcontroller.

Features

F2MC-8L family CPU core.
Maximum memory space: 64 Kbytes.
Minimum execution time/interrupt processing time MB89170 series: 1.1 µs/10 µs (at 3.58 MHz oscillation) MB89170A/170L series: 0.6 µs/5.4 µs (at 7.16 MHz oscillation).
Dual-clock control system (MB89170/170A series only).
I/O ports: max. 37 ports.
21-bit timebase counter.
Watch prescaler (MB89170/170A series only).
Watchdog timer.
8/16-bit timer/counter: 1 ch.
