MB82DBS04163C - MEMORY Mobile FCRAMTM CMOS 64 M Bit

Fujitsu Media Devices

The MB82DBS04163C by Fujitsu Media Devices is a MEMORY Mobile FCRAMTM CMOS 64 M Bit. Below is the official datasheet preview.

📥 Download Datasheet

MB82DBS04163C MEMORY Mobile FCRAMTM CMOS 64 M Bit by Fujitsu Media Devices - Datasheet Preview — Official preview page of the **MB82DBS04163C** MEMORY Mobile FCRAMTM CMOS 64 M Bit datasheet (Fujitsu Media Devices).

Datasheet Details

Part number	MB82DBS04163C
Manufacturer	Fujitsu Media Devices
File Size	588.13 KB
Description	MEMORY Mobile FCRAMTM CMOS 64 M Bit
Datasheet	MB82DBS04163C_FujitsuMediaDevices.pdf

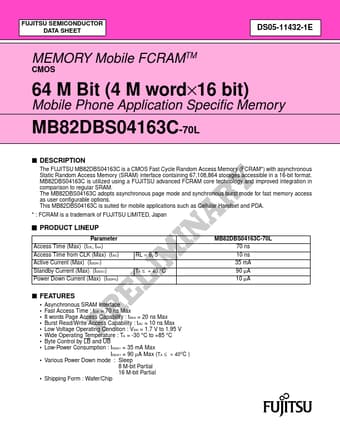

Additional preview pages of the MB82DBS04163C datasheet.

MB82DBS04163C Product details

Description

Mobile Phone Application Specific Memory The FUJITSU MB82DBS04163C is a CMOS Fast Cycle Random Access Memory (FCRAM ) with asynchronous Static Random Access Memory (SRAM) interface containing 67,108,864 storages accessible in a 16-bit format.

Features

Asynchronous SRAM Interface Fast Access Time : tCE = 70 ns Max 8 words Page Access Capability : tPAA = 20 ns Max Burst Read/Write Access Capability : tAC = 10 ns Max Low Voltage Operating Condition : VDD = 1.7 V to 1.95 V Wide Operating Temperature : TA = -30 °C to +85 °C Byte Control by LB and UB Low-Power Consumption : IDDA1 = 35 mA Max IDDS1 = 90 µA Max (TA ≤ + 40°C ).
Various Power Down mode : Sleep 8 M-bit.
