MB86060 - 16-Bit Interpolating Digital to Analog Converter

Description

The MB86060 integrates a 12-bit 400MSa/s DAC with selectable front end processing to provide input interpolation filtering, dither and noise shaping.

Features

  • 16-bit Interpolating Digital to Analog conversion.
  • x1, x2 or x4 interpolation filtering.
  • 100MSa/s input, with x4 interpolation enabled.
  • Programmable highpass filtered dither.
  • Selectable 2nd order noise shaping.
  • Versatile CMOS digital interface.
  • Internal programmable clock multiplier.
  • Low power, 3.3V operation (343mW @32MSa/s input, x4).
  • Performance enhanced pinout with on-chip decoupling.
  • 0.35µm CMOS techn.

📥 Download Datasheet

Datasheet Details

Part number MB86060
Manufacturer Fujitsu Media Devices Limited
File Size 131.61 KB
Description 16-Bit Interpolating Digital to Analog Converter
Datasheet download datasheet MB86060 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MB86040 CMOS Pipelined Divider Fujitsu
MB86041A (MB86041A / MB86043) CMOS Pipelined Divider Fujitsu
MB86043 (MB86041A / MB86043) CMOS Pipelined Divider Fujitsu
MB86046B Microcontroller Fujitsu
MB86 Single Phase Bridge Rectifier Micro Commercial Components

Other Datasheets by Fujitsu Media Devices Limited

Part Number Description
MB86060 16-Bit Interpolating Digital to Analog Converter
MB86064 Dual 14-bit 1GSa/s DAC
MB86064 Dual 14-bit 1GSa/s DAC
MB86029 TV/VCR D/A Converter
MB86029 TV/VCR D/A Converter (3ch 8bit)

Full PDF Text Transcription

Click to expand full text

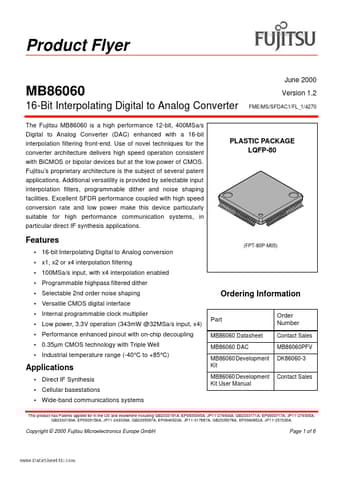

www.DataSheet4U.com Product Flyer June 2000 MB86060 16-Bit Interpolating Digital to Analog Converter The Fujitsu MB86060 is a high performance 12-bit, 400MSa/s Digital to Analog Converter (DAC) enhanced with a 16-bit interpolation filtering front-end. Use of novel techniques for the converter architecture delivers high speed operation consistent with BiCMOS or bipolar devices but at the low power of CMOS. Fujitsu’s proprietary architecture is the subject of several patent applications. Additional versatility is provided by selectable input interpolation filters, programmable dither and noise shaping facilities.
