MB506 ULTRA HIGH FREQUENCY PRESCALER

Pin Number 1 2 3 4 5 6 7 8 Symbol IN VCC SW1 OUT GND SW2 NC IN Input Power Supply Voltage Divide Ratio Control Input Selecting Divide Ratio (See Divide Ratio Table) Output Ground Divide Ratio Control Input Selecting Divide Ratio (See Divide Ratio Table) No Connection Complementary Input Function 2 .

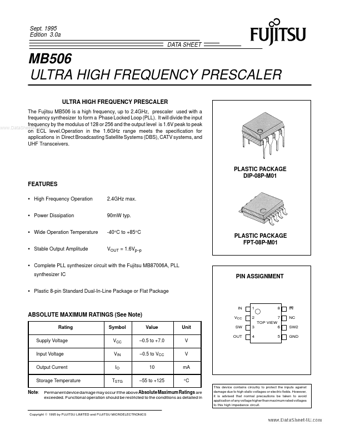

Sept. 1995 Edition 3.0a DATA SHEET MB506 ULTRA HIGH FREQUENCY PRESCALER ULTRA HIGH FREQUENCY PRESCALER The Fujitsu MB506 is a high frequency, up to 2.4GHz, prescaler used with a frequency synthesizer to form a Phase Locked Loop (PLL). It will divide the input frequency by the modulus of 128 or 256 and the output level is 1.6V peak to peak www.DataSheet4U.com on ECL level.Operation in the 1.6GHz range meets the specification for applications in Direct Broadcasting Satellite Systems (DBS), CATV s.

MB506 Features

* S High Frequency Operation S Power Dissipation S Wide Operation Temperature S Stable Output Amplitude 2.4GHz max. 90mW typ. -40°C to +85°C VOUT = 1.6Vp

* p PLASTIC PACKAGE FPT-08P-M01 S Complete PLL synthesizer circuit with the Fujitsu MB87006A, PLL synthesizer IC S Plastic 8-pin Standard Du

MB506 Datasheet (84.96 KB)

MB506 Datasheet Preview — Preview of MB506 PDF

Datasheet Details

Part number:

MB506

Manufacturer:

Fujitsu Media Devices Limited

File Size:

84.96 KB

Description:

Ultra high frequency prescaler.
