MB40168 - (MB40178) Single Chip 8-Bit A/D and 9-Bit D/A Converter

Download the MB40168 datasheet PDF. This datasheet also covers the MB40178 variant, as both devices belong to the same (mb40178) single chip 8-bit a/d and 9-bit d/a converter family and are provided as variant models within a single manufacturer datasheet.

Description

The Fujitsu MB40168 and MB40178 are high speed, low power single chip A/D and D/A converters designed for video processing applications.

The A/D converter has a resolution of 8 bits while the D/A converter has 9bit resolution.

Features

  • Resolution.
  • A/D: 8 bits D/A: 9 bits Conversion Rate A/D: Max. 20 MSPS D/A: Max. 40 MSPS Linearity Error A/D: Max. + 0.3% D/A: Max. + 0.2% On-chip reference voltage generator (resistor divided method) and clamp circuit Analog Input Voltage 3 to 5 V without clamp circuit 0 to 3 V in 1.95 VP-P clamp circuit Analog Output Voltage 3 to 5 V (Continued) s.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MB40178_FujitsuMediaDevicesLimited.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MB40168
Manufacturer Fujitsu Media Devices Limited
File Size 687.68 KB
Description (MB40178) Single Chip 8-Bit A/D and 9-Bit D/A Converter
Datasheet download datasheet MB40168 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MB401 SINGLE-PHASE BRIDGE RECTIFIER MIC GROUP RECTIFIERS
MB401 40A Single-Phase Bridge Rectifier TAITRON
MB401 40 Amp Single Phase Bridge Rectifier 50 to 1000 Volts Micro Commercial
MB4010 40 Amp Single Phase Bridge Rectifier 50 to 1000 Volts Micro Commercial Components
MB4010 SINGLE-PHASE BRIDGE RECTIFIER MIC GROUP RECTIFIERS

Other Datasheets by Fujitsu Media Devices Limited

Part Number Description
MB40166 (MB40176) AD/DA CONVERTER
MB40176 (MB40166) AD/DA CONVERTER
MB40178 (MB40168) Single Chip 8-Bit A/D and 9-Bit D/A Converter

Full PDF Text Transcription

Click to expand full text

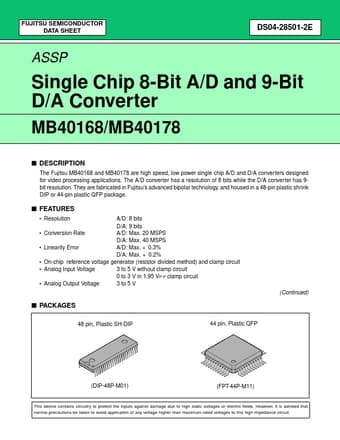

FUJITSU SEMICONDUCTOR DATA SHEET DS04-28501-2E ASSP Single Chip 8-Bit A/D and 9-Bit D/A Converter MB40168/MB40178 s DESCRIPTION The Fujitsu MB40168 and MB40178 are high speed, low power single chip A/D and D/A converters designed for video processing applications. The A/D converter has a resolution of 8 bits while the D/A converter has 9bit resolution. They are fabricated in Fujitsu’s advanced bipolar technology, and housed in a 48-pin plastic shrink DIP or 44-pin plastic QFP package. s FEATURES • Resolution • • • • • A/D: 8 bits D/A: 9 bits Conversion Rate A/D: Max. 20 MSPS D/A: Max. 40 MSPS Linearity Error A/D: Max. + 0.3% D/A: Max. + 0.2% On-chip reference voltage generator (resistor divided method) and clamp circuit Analog Input Voltage 3 to 5 V without clamp circuit 0 to 3 V in 1.
