FAR-F4DA - TIMING EXTRACTION FILTER

Description

The F4 series are timing extraction filter used in the high-grade digital transmission equipment like wide-band ISDN.

The F4 series uses a single lithium tantalate piezoelectric crystal (LiTaO3) that has large electromechanical coupling coefficient, and a unique SAW resonator.

Features

  • Wide frequency range: 50 to 300MHz Wide band width: 0.3 to 1.0% Low insertion loss: 6dB or less Excellent temperature characteristics: ±200 ppm or less (0 to 60°C).
  • No adjustment is required due to small frequency deviation: ∆fo < ±500ppm.
  • High reliable hermetically sealed package.
  • Small type, and compatible with 14-pin DIP IC s.

📥 Download Datasheet

Datasheet Details

Part number FAR-F4DA
Manufacturer Fujitsu Media Devices Limited
File Size 58.17 KB
Description TIMING EXTRACTION FILTER
Datasheet download datasheet FAR-F4DA Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FAR-F6CP-1G5754-D20S For Mobile Communications Fujitsu Microelectronics
FAR-F6CP-1G5754-D20T For Mobile Communications Fujitsu Microelectronics
FAR-F6CP-1G5754-D22J For Mobile Communications Fujitsu Microelectronics
FAR-F6CP-1G5754-L21H For Mobile Communications Fujitsu Microelectronics
FAR-F6CP-1G5754-L21K For Mobile Communications Fujitsu Microelectronics

Other Datasheets by Fujitsu Media Devices Limited

Part Number Description
FAR-F1DA TIMING EXTRACTION BANDPASS FILTER
FAR-F5CE Piezoelectric SAW BPF
FAR-F5CE-D2 Piezoelectric SAW BPF (700 to 1000 MHz)
FAR-F5CH Piezoelectric SAW BPF (700 to 1000 MHz)
FAR-F5CM SAW Filter (700 to 1000 MHz)

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

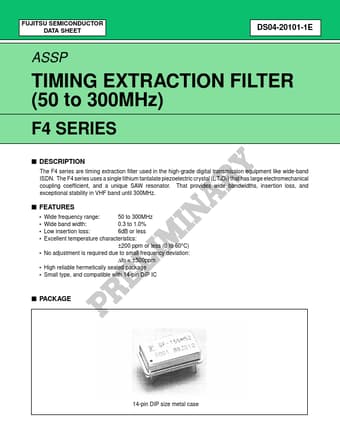

FUJITSU SEMICONDUCTOR DATA SHEET DS04-20101-1E ASSP TIMING EXTRACTION FILTER (50 to 300MHz) F4 SERIES s DESCRIPTION The F4 series are timing extraction filter used in the high-grade digital transmission equipment like wide-band ISDN. The F4 series uses a single lithium tantalate piezoelectric crystal (LiTaO3) that has large electromechanical coupling coefficient, and a unique SAW resonator. That provides wide bandwidths, insertion loss, and exceptional stability in VHF band until 300MHz. s FEATURES • • • • Wide frequency range: 50 to 300MHz Wide band width: 0.3 to 1.
