FA6A31N - Current resonant controller

Download the FA6A31N datasheet PDF. This datasheet also covers the FA6A30N variant, as both devices belong to the same current resonant controller family and are provided as variant models within a single manufacturer datasheet.

Description

Pin No.

2 2 （NC） - (No connection) 3 3 BO I/O Brown-in/out setting 1, 2 4 FB I/O Feedback input 1, 2 5 CS I/O Soft start and soft end 1 6 STB I/O Standby signal input 1,

Features

  • For wide input voltage range, LLC current resonant power supply system can be configured without PFC. Integrated high-side and low-side drive circuits, which can be directly connected to the power MOSFET and operates with 50% duty cycle. The integrated startup circuit achieves downsized power supply and lower power consumption. Operating mode can be selected from normal operation mode, low standby mode, and ultralow standby mode (STB pin) During the low standby mode, standby power is lowered by.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (FA6A30N-FujiElectric.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
FA6A00N 2nd Generation LLC Current Resonant Controller Fuji Electric
FA6030B11W7-91 AC AXIAL FAN COOLTRON
FA6030B22W7-91 AC AXIAL FAN COOLTRON

Other Datasheets by Fuji Electric

Part Number Description
FA6A30N Current resonant controller
FA6A01N 2nd Generation LLC Current Resonant Controller
FA6A10N 2nd Generation LLC Current Resonant Controller
FA6A11N 2nd Generation LLC Current Resonant Controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

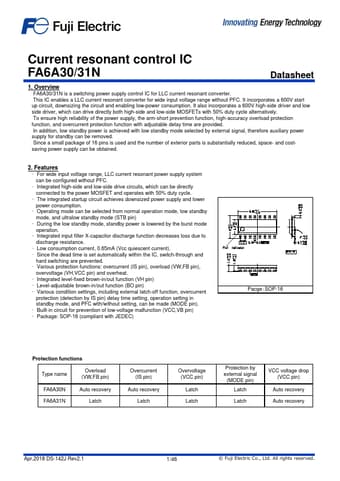

Current resonant control IC FA6A30/31N Datasheet 1. Overview FA6A30/31N is a switching power supply control IC for LLC current resonant converter. This IC enables a LLC current resonant converter for wide input voltage range without PFC. It incorporates a 600V start up circuit, downsizing the circuit and enabling low-power consumption. It also incorporates a 600V high-side driver and low side driver, which can drive directly both high-side and low-side MOSFETs with 50% duty cycle alternatively. To ensure high reliability of the power supply, the arm-short prevention function, high-accuracy overload protection function, and overcurrent protection function with adjustable delay time are provided.
