YG802C04R - SCHOTTKY BARRIER DIODE

YG802C04R Description

YG802C04R SCHOTTKY BARRIER DIODE (40V / 10A TO-22OF15) Outline Drawings 10±0.5 ø3.2 +0.2 -0.1 4.5±0.2 2.7±0.2 6.3 2.7±0.2 3.7±0.2 1.2±0.2 13Min F.

YG802C04R Applications

* High speed power switching. Connection Diagram 2 1 3 Maximum Ratings and Characteristics Absolute Maximum Ratings Item Repetitive peak reverse voltage Repetitive peak surge reverse voltage Isolation voltage Average output current Surge current Operating junction temperature Storage temperature Sym

📥 Download Datasheet

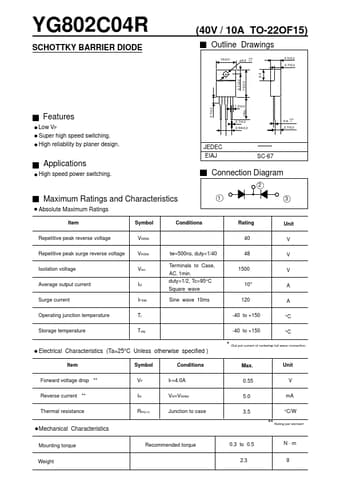

Preview of YG802C04R PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
YG802C04R
Manufacturer
Fuji Electric
File Size
53.24 KB
Datasheet
YG802C04R_FujiElectric.pdf
Description
SCHOTTKY BARRIER DIODE
