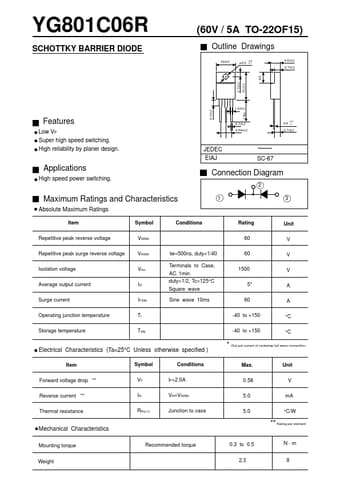

YG801C06R
SCHOTTKY BARRIER DIODE
(60V / 5A TO-22OF15)
Outline Drawings
10±0.5 ø3.2
+0.2 -0.1
4.5±0.2 2.7±0.2 6.3
2.7±0.2 3.7±0.2
1.2±0.2 13Min
Features
Low VF Super high speed switching. High reliability by planer design.
15±0.3
0.7±0.2 2.54±0.2
0.6
+0.2 -0
2.7±0.2
JEDEC EIAJ
SC-67
Applications
High speed power switching.
Connection Diagram
2 1 3
Maximum Ratings and Characteristics
Absolute Maximum Ratings
Item Repetitive peak reverse voltage Repetitive peak surge reverse voltage Isolation voltage Average output current Surge current Operating junction temperature Storage temperature Symbol VRRM VRSM Viso IO IFSM Tj Tstg tw=500ns, duty=1/40 Terminals to Case, AC. 1min.
