ESAD92M-03RR - Low-Loss Fast Recovery Diode

Datasheet Details

Part number	ESAD92M-03RR
Manufacturer	Fuji Electric
File Size	385.39 KB
Description	Low-Loss Fast Recovery Diode
Datasheet	ESAD92M-03RR Datasheet

📁 Similar Datasheet

ESAD92M-03 - Ultrafast Rectifier (INCHANGE)
ESAD25-02C - 16 Ampere Dual Common Cathode Fast Recovery Half Bridge Rectifiers (Thinki Semiconductor)
ESAD25-04C - 16 Ampere Dual Common Cathode Fast Recovery Half Bridge Rectifiers (Thinki Semiconductor)
ESAD25-06C - 16 Ampere Dual Common Cathode Fast Recovery Half Bridge Rectifiers (Thinki Semiconductor)
eSA010 - General Purpose Tiny Controller (ELAN Microelectronics)
eSA015 - General Purpose Tiny Controller (ELAN Microelectronics)
eSA020 - General Purpose Tiny Controller (ELAN Microelectronics)
eSA030 - General Purpose Tiny Controller (ELAN Microelectronics)
eSA040 - General Purpose Tiny Controller (ELAN Microelectronics)
eSA065 - General Purpose Tiny Controller (ELAN Microelectronics)

Other Datasheets by Fuji Electric

ESAD92M-03R - LOW LOSS SUPER HIGH SPEED RECTIFIER
ESAD92M-03 - LOW LOSS SUPER HIGH SPEED RECTIFIER
ESAD92M-02 - LOW LOSS SUPER HIGH SPEED RECTIFIER
ESAD92-02 - LOW LOSS SUPER HIGH SPEED RECTIFIER
ESAD92-02R - SILICON DIODE
ESAD92-03 - LOW LOSS SUPER HIGH SPEED RECTIFIER
ESAD25 - FAST RECOVERY DIODE
ESAD25C - FAST RECOVERY DIODE

Full PDF Text Transcription

Click to expand full text

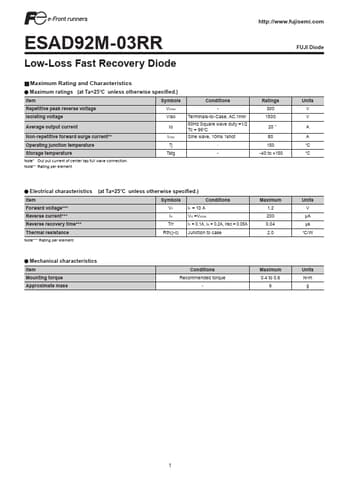

ESAD92M-03RR Low-Loss Fast Recovery Diode http://www.fujisemi.com FUJI Diode Maximum Rating and Characteristics Maximum ratings (at Ta=25˚C unless otherwise specified.) Item Symbols Repetitive peak reverse voltage VRRM Isolating voltage Viso Average output current Io Non-repetitive forward surge current** Operating junction temperature Storage temperature Note* Out put current of center tap full wave connection. Note** Rating per element IFSM Tj Tstg Conditions - Terminals-to-Case, AC.
