6MBP30VSC060-50 - IGBT

Fuji Electric

📥 Download Datasheet

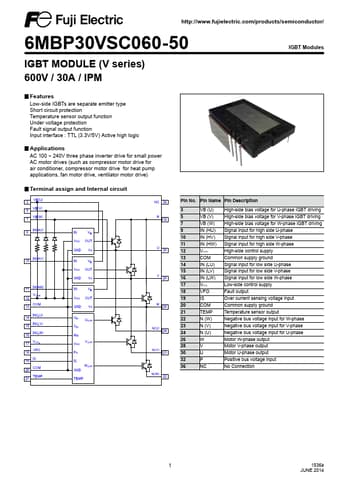

6MBP30VSC060-50 Datasheet Preview — Preview of 6MBP30VSC060-50 PDF

Datasheet Details

Part number	6MBP30VSC060-50
Manufacturer	Fuji Electric
File Size	769.96 KB
Description	IGBT
Datasheet	6MBP30VSC060-50-FujiElectric.pdf

6MBP30VSC060-50 Product details

Description

3 VB (U) High-side bias voltage for U-phase IGBT driving 5 VB (V) High-side bias voltage for V-phase IGBT driving 7 VB (W) High-side bias voltage for W-phase IGBT driving 9 IN (HU) Signal input for high side U-phase 10 IN (HV) Signal input for high side V-phase 11 IN (HW) Signal input for high side W-phase 12 VCCH High-side control supply 13 COM Common supply ground 14 IN (LU) Signal input for low side U-phase 15 IN (LV) Signal input for low side V-phase 16 IN (LW) Signal input for l

Features

Low-side IGBTs are separate emitter type Short circuit protection Temperature sensor output function Under voltage protection Fault signal output function Input interface : TTL (3.3V/5V) Active high logic.
