2SK3501-01 - N-CHANNEL SILICON POWER MOSFET

Features

  • High speed switching Low on-resistance No secondary breadown Low driving power Avalanche-proof FUJI POWER MOSFET N-.

📥 Download Datasheet

📁 Similar Datasheet

  • 2SK3501 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK350 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK350 - Silicon N-Channel MOSFET (Hitachi)
  • 2SK3503 - N-Channel MOSFET (Kexin)
  • 2SK3503 - N-Channel MOSFET (NEC)
  • 2SK3505 - N-Channel MOSFET (INCHANGE)
  • 2SK3505-01MR - N-Channel MOSFET (Sanyo Semicon Device)
  • 2SK3506 - N-Channel MOSFET (Toshiba Semiconductor)
  • 2SK3507 - SWITCHING N-CHANNEL POWER MOSFET (NEC)
  • 2SK3508-01MR - N-CHANNEL SILICON POWER MOSFET (Fuji)
Other Datasheets by Fuji Electric

Full PDF Text Transcription

Click to expand full text

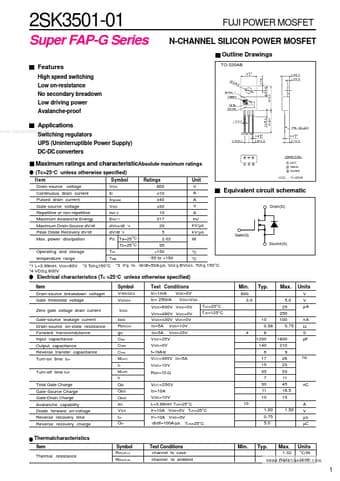

2SK3501-01 Super FAP-G Series Features High speed switching Low on-resistance No secondary breadown Low driving power Avalanche-proof FUJI POWER MOSFET N-CHANNEL SILICON POWER MOSFET Outline Drawings TO-220AB Applications www.DataSheet4U.com Switching regulators UPS (Uninterruptible Power Supply) DC-DC converters Maximum ratings and characteristicAbsolute maximum ratings (Tc=25°C unless otherwise specified) Symbol Ratings Unit V V DS 600 A ID ±10 A ID(puls] ±40 V VGS ±30 A IAR *2 10 mJ EAS *1 217 kV/µs dVDS/dt *4 20 dV/dt *3 5 kV/µs PD Ta=25°C 2.02 W Tc=25°C 95 +150 Operating and storage Tch °C -55 to +150 temperature range Tstg °C *1 L=3.
