2SK3468-01 - N-Channel MOSFET

Features

  • High speed switching Low on-resistance No secondary breadown Low driving power Avalanche-proof FUJI POWER MOSFET N-.

📥 Download Datasheet

📁 Similar Datasheet

  • 2SK3468 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK346 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK346 - Silicon N-Channel MOSFET (Hitachi)
  • 2SK3460 - N-Channel MOSFET (Sanken)
  • 2SK3461-S - N-Channel MOSFET (VBsemi)
  • 2SK3462 - N-Channel MOSFET (Toshiba Semiconductor)
  • 2SK3466 - N-Channel MOSFET (Toshiba Semiconductor)
  • 2SK3467 - SWITCHING N-CHANNEL POWER MOSFET (NEC)
  • 2SK34 - Transistor (ETC)
  • 2SK3402 - SWITCHING N-CHANNEL POWER MOSFET (NEC)
Other Datasheets by Fuji Electric

Full PDF Text Transcription

Click to expand full text

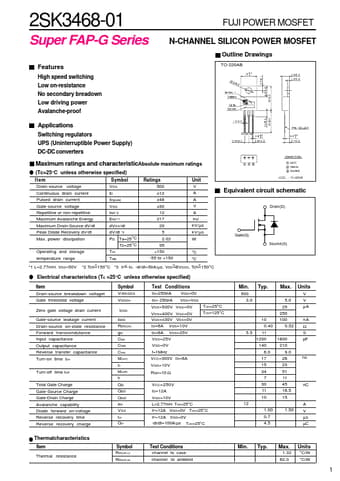

2SK3468-01 Super FAP-G Series Features High speed switching Low on-resistance No secondary breadown Low driving power Avalanche-proof FUJI POWER MOSFET N-CHANNEL SILICON POWER MOSFET Outline Drawings TO-220AB Applications Switching regulators UPS (Uninterruptible Power Supply) DC-DC converters Maximum ratings and characteristicAbsolute maximum ratings (Tc=25°C unless otherwise specified) Item Symbol Ratings Unit Drain-source voltage VDS 500 V Continuous drain current ID ±12 A Pulsed drain current ID(puls] ±48 A Gate-source voltage VGS ±30 V Repetitive or non-repetitive IAR *2 12 A Maximum Avalanche Energy EAS *1 217 mJ Maximum Drain-Source dV/dt dVDS/dt 20 kV/µs Peak Diode Recovery dV/dt dV/dt *3 5 kV/µs Max. power dissipation PD Ta=25°C Tc=25°C 2.
