2SK1937-01 - N-channel MOS-FET

Features

  • High Speed Switching Low On-Resistance No Secondary Breakdown Low Driving Power High Voltage VGS = ± 30V Guarantee Avalanche Proof N-channel MOS-FET 500V 0,48Ω 15A 125W > Outline Drawing >.

📥 Download Datasheet

📁 Similar Datasheet

  • 2SK1937-01 - N-Channel MOSFET (INCHANGE)
  • 2SK1937 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK193 - N-Channel FET (NEC)
  • 2SK1930 - Silicon N-Channel MOSFET (Toshiba Semiconductor)
  • 2SK1931 - VR Series Power MOSFET (Shindengen Electric Mfg.Co.Ltd)
  • 2SK1933 - Silicon N-Channel MOSFET (Hitachi Semiconductor)
  • 2SK1933 - Silicon N Channel MOS FET (Renesas)
  • 2SK1933 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK1934 - Silicon N-Channel MOSFET (Hitachi Semiconductor)
  • 2SK1936 - N-Channel MOSFET Transistor (Inchange Semiconductor)
Other Datasheets by Fuji Electric

Full PDF Text Transcription

Click to expand full text

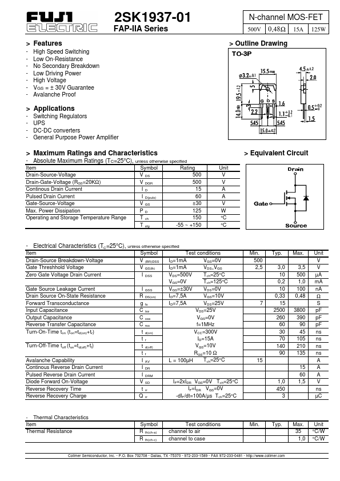

2SK1937-01 FAP-IIA Series > Features High Speed Switching Low On-Resistance No Secondary Breakdown Low Driving Power High Voltage VGS = ± 30V Guarantee Avalanche Proof N-channel MOS-FET 500V 0,48Ω 15A 125W > Outline Drawing > Applications Switching Regulators UPS DC-DC converters General Purpose Power Amplifier > Maximum Ratings and Characteristics - Absolute Maximum Ratings (TC=25°C), unless otherwise specified Item Drain-Source-Voltage Drain-Gate-Voltage (RGS=20KΩ) Continous Drain Current Pulsed Drain Current Gate-Source-Voltage Max.
