FM62429, Data Control Dual Electronic Volume

Pin Symbol Functions 1 VIN1 Channel 1 input pin 2 VOUT1 Channel 1 output pin 3 GND GND 4 DATA Control date input pin.

Inputs date in synchronization with clock.

5 CLOCK Clock input pin for transferring serial data.

6 VCC Power supply pin.

Stabilize the pin with decoupling capacit

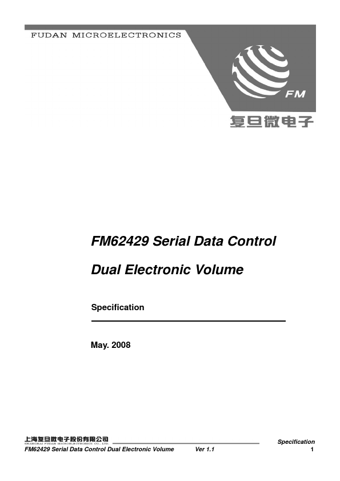

FM62429 Serial Data Control Dual Electronic Volume Specification May.

2008 FM62429 Serial Data Control Dual Electronic Volume Ver 1.1 Specification 1 INFORMATION IN THIS DOCUMENT IS INTENDED AS A REFERENCE TO ASSIST OUR CUSTOMERS IN THE SELECTION OF SHANGHAI FUDAN MICROELECTRONICS CO., LTD PRODUCT BEST SUITED TO THE CUSTOMER'S APPLICATION; THEY DO NOT CONVEY ANY LICENSE UNDER ANY INTELLECTUAL PROPERTY RIGHTS, OR ANY OTHER RIGHTS, BELONGING TO SHANGHAI FUDAN MICROELECTRONICS CO., LTD OR A THI

FM62429 Features

* Controlled with 2-wire serial data Independent control allowed in each channel Build-in reference circuit Gain range: 0dB to - 83dB(1dB/step), - ∞ Low noise and low distortion Package: DIP8 Block Diagram FM62429 Serial Data Control Dual Electronic Volume Ver 1.1 Specification 3 Pin A
