FM24C64D - 2-Wire Serial EEPROM

FM24C64D Description

FM24C64D 2-Wire Serial EEPROM With Unique ID and Security Sector Data Sheet Jun.2015 FM24C64D 2-Wire Serial EEPROM Ver 1.3 Data Sheet 1 INFORMATI.
The FM24C64D provides 65,536 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 8,192 words of 8 bits each,.

FM24C64D Features

* z Low Operation Voltage: VCC = 1.7V to 5.5V z Internally Organized: 8,192 x 8 z 2-wire Serial Interface z Schmitt Trigger, Filtered Inputs for Noise Suppression z Bi-directional Data Transfer Protocol z 1MHz (2.5V~5.5V) and 400 kHz (1.7V) Compatibility z Write Protect Pin for Hardware Data Protecti

FM24C64D Applications

* NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. FUTURE ROUTINE REVISIONS WILL OCCUR WHEN APPROPRIATE, WITHOUT NOTICE. CONTACT SHANGHAI FUDAN MICROELECTRONICS GROUP CO. , LTD SALES OFFICE TO OBTAIN THE LATEST SP

📥 Download Datasheet

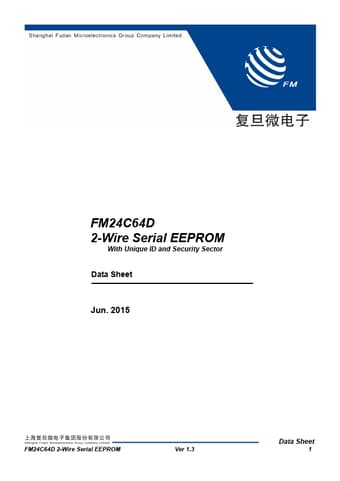

Preview of FM24C64D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FM24C64D
Manufacturer
Fudan
File Size
1.20 MB
Datasheet
FM24C64D-Fudan.pdf
Description
2-Wire Serial EEPROM
