SB10200 - 10A SCHOTTKY BARRIER RECTIFIERS

Download the SB10200 datasheet PDF. This datasheet also covers the SB1040 variant, as both devices belong to the same 10a schottky barrier rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • 1.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SB1040-FrontierElectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SB10200
Manufacturer Frontier Electronics
File Size 458.73 KB
Description 10A SCHOTTKY BARRIER RECTIFIERS
Datasheet download datasheet SB10200 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SB10200 10A SCHOTTKY BARRIERRECTIFIER YS
SB10200 Power Schottky Rectifier SIRECT
SB10200 10A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER WON-TOP
SB10200CT Schottky Barrier Rectifier Formosa MS
SB10200CT 10A SCHOTTKY BARRIERRECTIFIER YS

Other Datasheets by Frontier Electronics

Part Number Description
SB10100 10A SCHOTTKY BARRIER RECTIFIERS
SB10150 10A SCHOTTKY BARRIER RECTIFIERS
SB1040 10A SCHOTTKY BARRIER RECTIFIERS
SB1060 10A SCHOTTKY BARRIER RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

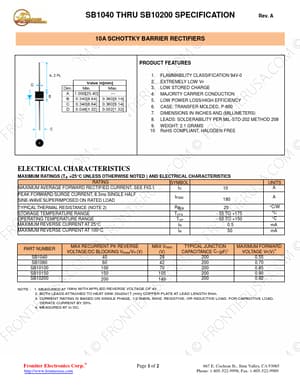

SB1040 THRU SB10200 SPECIFICATION 10A SCHOTTKY BARRIER RECTIFIERS Rev. A PRODUCT FEATURES 1. FLAMMABILITY CLASSIFICATION 94V-0 2. EXTREMELY LOW VF 3. LOW STORED CHARGE 4. MAJORITY CARRIER CONDUCTION 5. LOW POWER LOSS/HIGH EFFICIENCY 6. CASE: TRANSFER MOLDED, P-600 7. DIMENSIONS IN INCHES AND (MILLIMETERS) 8. LEADS: SOLDERABILITY PER MIL-STD-202 METHOD 208 9. WEIGHT: 2.1 GRAMS 10 RoHS COMPLIANT, HALOGEN FREE ELECTRICAL CHARACTERISTICS MAXIMUM RATINGS (TA =25°C UNLESS OTHERWISE NOTED ) AND ELECTRICAL CHARACTERISTICS RATING MAXIMUM AVERAGE FORWARD RECTIFIED CURRENT, SEE FIG.1 PEAK FORWARD SURGE CURRENT, 8.
