MBRD1020CT Datasheet (Frontier Electronics) - 10A DUAL SCHOTTKY BARRIER RECTIFIERS

MBRD1020CT, 10A DUAL SCHOTTKY BARRIER RECTIFIERS

Frontier Electronics Corp.

667 E.

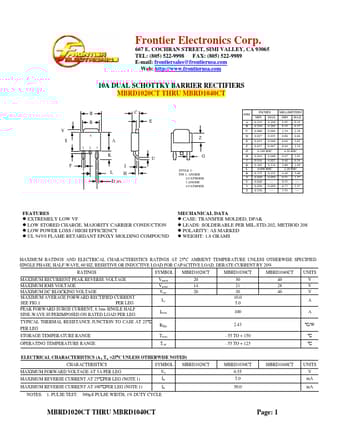

COCHRAN STREET, SIMI VALLEY, CA 93065 TEL: (805) 522-9998 FAX: (805) 522-9989 E-mail: frontiersales@frontierusa.com Web: http://www.frontierusa.com 10A DUAL SCHOTTKY BARRIER RECTIFIERS MBRD1020CT THRU MBRD1040CT V S F B R 4 12 3 C A K J LH D 2PL E U Z G STYLE 3 : PIN 1.

ANODE 2.CATHODE 3.ANODE 4.CATHODE INCHES MILLIMETERS DIM MIN MAX MIN MAX A 0.235 0.250 5.97 6.35 B 0.250 0.265 6.35 6.37 C 0.086 0.094 2.19 2.38 D 0.027 0.035 0.69 0.88 E 0.033 0.040 0.

MBRD1020CT Features

* z EXTREMELY LOW VF z LOW STORED CHARGE, MAJORITY CARRIER CONDUCTION z LOW POWER LOSS / HIGH EFFICIENCY z UL 94V0 FLAME RETARDANT EPOXY MOLDING COMPOUND MECHANICAL DATA z CASE: TRANSFER MOLDED, DPAK z LEADS: SOLDERABLE PER MIL-STD-202, METHOD 208 z POLARITY: AS MARKED z WEIGHT: 1.8 GRAMS MAXIMUM RA
