1N5399G - 1.5A GENERAL PURPOSE RECTIFIER

Download the 1N5399G datasheet PDF. This datasheet also covers the 1N5391G variant, as both devices belong to the same 1.5a general purpose rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • 1.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N5391G-FrontierElectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1N5399G
Manufacturer Frontier Electronics
File Size 849.15 KB
Description 1.5A GENERAL PURPOSE RECTIFIER
Datasheet download datasheet 1N5399G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N5399G GENERAL PURPOSE RECTIFIER RFE
1N5399G GLASS PASSIVATED RECTIFIERS HY
1N5399G GLASS PASSIVATED RECTIFIER MEI SEMI
1N5399G General Purpose Rectifiers Eris
1N5399G Axial Leaded General Purpose Rectifiers Formosa MS

Other Datasheets by Frontier Electronics

Part Number Description
1N5391G 1.5A GENERAL PURPOSE RECTIFIER
1N5392G 1.5A GENERAL PURPOSE RECTIFIER
1N5393G 1.5A GENERAL PURPOSE RECTIFIER
1N5395G 1.5A GENERAL PURPOSE RECTIFIER
1N5397G 1.5A GENERAL PURPOSE RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

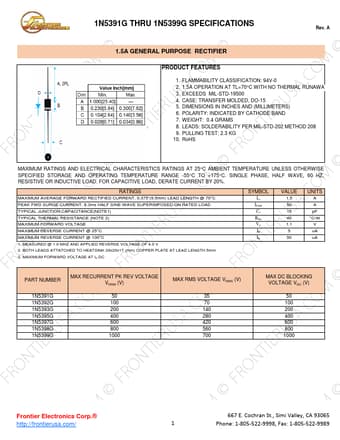

1N5391G THRU 1N5399G SPECIFICATIONS Rev. A 1.5A GENERAL PURPOSE RECTIFIER PRODUCT FEATURES 1. FLAMMABILITY CLASSIFICATION: 94V-0 2. 1.5A OPERATION AT TL=70°C WITH NO THERMAL RUNAWAY 3. EXCEEDS MIL-STD-19500 4. CASE: TRANSFER MOLDED, DO-15 5. DIMENSIONS IN INCHES AND (MILLIMETERS) 6. POLARITY: INDICATED BY CATHODE BAND 7. WEIGHT: 0.4 GRAMS 8. LEADS: SOLDERABILITY PER MIL-STD-202 METHOD 208 9. PULLING TEST: 2.3 KG 10. RoHS MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS RATINGS AT 25°C AMBIENT TEMPERATURE UNLESS OTHERWISE SPECIFIED STORAGE AND OPERATING TEMPERATURE RANGE -55°C TO +175°C. SINGLE PHASE, HALF WAVE, 60 HZ, RESISTIVE OR INDUCTIVE LOAD. FOR CAPACITIVE LOAD, DERATE CURRENT BY 20%. RATINGS MAXIMUM AVERAGE FORWARD RECTIFIED CURRENT, 0.375”(9.
