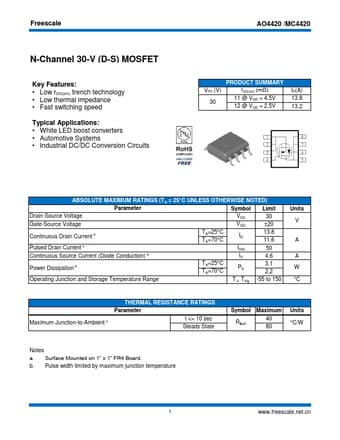

Freescale
N-Channel 30-V (D-S) MOSFET
Key Features: • Low rDS(on) trench technology • Low thermal impedance • Fast switching speed
Typical Applications: • White LED boost converters • Automotive Systems • Industrial DC/DC Conversion Circuits
AO4420 / MC4420
VDS (V) 30
PRODUCT SUMMARY rDS(on) (mΩ)
11 @ VGS = 4.5V 12 @ VGS = 2.5V
ID(A) 13.8 13.2
ABSOLUTE MAXIMUM RATINGS (TA = 25°C UNLESS OTHERWISE NOTED)
Parameter
Symbol Limit
Drain-Source Voltage
VDS 30
Gate-Source Voltage
VGS ±20
Continuous Drain Current a
Pulsed Drain Current b Continuous Source Current (Diode Conduction) a
TA=25°C TA=70°C
ID
IDM IS
13.8 11.6 50 4.6
Power Dissipation a
TA=25°C TA=70°C
PD
3.1 2.
