MPR031 - (MPR031 / MPR032) Proximity Capacitive Touch Sensor Controller

Freescale Semiconductor

The MPR031 by Freescale Semiconductor is a (MPR031 / MPR032) Proximity Capacitive Touch Sensor Controller. Below is the official datasheet preview.

📥 Download Datasheet

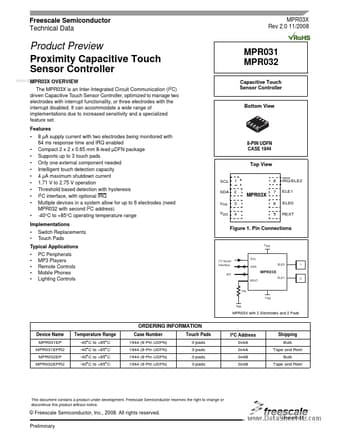

MPR031 (MPR031 / MPR032) Proximity Capacitive Touch Sensor Controller by Freescale Semiconductor - Datasheet Preview — Official preview page of the **MPR031** (MPR031 / MPR032) Proximity Capacitive Touch Sensor Controller datasheet (Freescale Semiconductor).

Datasheet Details

Part number	MPR031
Manufacturer	Freescale Semiconductor
File Size	340.38 KB
Description	(MPR031 / MPR032) Proximity Capacitive Touch Sensor Controller
Datasheet	MPR031_FreescaleSemiconductor.pdf
Additional preview pages of the MPR031 datasheet.

MPR031 Product details

Description

Device Pin Assignment Table 1 shows the pin assignment for the MPR03X.For a more detailed description of the functionality of each pin, refer to the appropriate chapter.Table 1. Device Pin Assignment www.datasheet4u.com Pin 1 2 3 4 5 6 7 8 Name SCL SDA VSS VDD REXT ELE0 ELE1 IRQ/ELE2 I C Serial Clock Input I2C Serial Data I/O Ground Positive Supply Voltage 2 Function Reference Resistor Connect a 75 kΩ ±1% resistor from REXT to VSS Electrode 0 Electrode 1 Interrupt Output or Touch Electrod

Features

8 µA supply current with two electrodes being monitored with 64 ms response time and IRQ enabled Compact 2 x 2 x 0.65 mm 8-lead µDFN package Supports up to 3 touch pads Only one external component needed Intelligent touch detection capacity 4 µA maximum shutdown current 1.71 V to 2.75 V operation Threshold based detect.
