MK51N512CLQ100, MK51N256CLQ100 - Up to 100 MHz ARM Cortex-M4 core

Freescale Semiconductor

The MK51N512CLQ100 by Freescale Semiconductor is a Up to 100 MHz ARM Cortex-M4 core. Below is the official datasheet preview.

📥 Download Datasheet

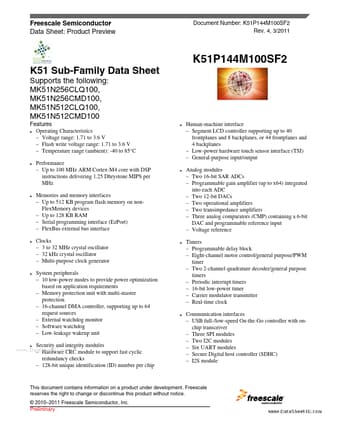

MK51N512CLQ100 Up to 100 MHz ARM Cortex-M4 core by Freescale Semiconductor - Datasheet Preview — Official preview page of the **MK51N512CLQ100** Up to 100 MHz ARM Cortex-M4 core datasheet (Freescale Semiconductor).

Datasheet Details

Part number	MK51N512CLQ100, MK51N256CLQ100
Manufacturer	Freescale Semiconductor
File Size	1.88 MB
Description	Up to 100 MHz ARM Cortex-M4 core
Datasheet	MK51N256CLQ100_FreescaleSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MK51N512CLQ100, MK51N256CLQ100. Please refer to the document for exact specifications by model.
Additional preview pages of the MK51N512CLQ100 datasheet.

MK51N512CLQ100 Product details

Description

2.2 Format4 2.3 Fields4 2.4 Example5 3 Terminology and guidelines5 3.1 Definition: Operating requirement5 3.2 Definition: Operating behavior6 3.3 Definition: Attribute6 3.4 Definition: Rating7 3.5 Result of exceeding a rating7 3.6 Relationship between ratings and operating requirements7 3.7 Guidelines for ratings and operating requirements8 3.8 Definition: Typical value8 3.9 Typical value conditions9 4 Ratings9 4.1 Thermal handling ratings10 4.2 Moisture handling ratings10 4.3 ESD handling rati

Features

Operating Characteristics.
Voltage range: 1.71 to 3.6 V.
Flash write voltage range: 1.71 to 3.6 V.
Temperature range (ambient): -40 to 85°C.
Performance.
Up to 100 MHz ARM Cortex-M4 core with DSP instructions delivering 1.25 Dhrystone MIPS per MHz.
Memories and memory interfaces.
Up to 512 KB program flash memory on nonFlexMemory devices.
Up to 128 KB RAM.
Serial programming interface (EzPort).
Fl.
