MCZ33810 - Automotive Engine Control IC

Description

of each pin can be found in the Functional Pin Description section beginning on page 13.

Features

  • are enabled such as spark duration, dwell time, and ignition coil current sense. When configured as a general purpose gate predriver, the 33810 provides external MOSFETs with short circuit protection, inductive flyback protection and diagnostics. The device is packaged in a 32 pin (0.65mm pitch) exposed pad SOIC. Features.
  • Designed to operate over the range of 4.5V ≤ VPWR ≤ 36V.
  • Quad ignition IGBT or MOSFET gate pre-driver with Parallel/SPI and/or PWM control.
  • Quad inj.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MCZ3001D Audio Power Supply ETC
MCZ34670 IEEE 802.3af PD Motorola Semiconductor
MCZ0605AH EMC Components TDK
MCZ1210CH EMC Components TDK
MCZ1210DH EMC Components TDK

Other Datasheets by Freescale Semiconductor (now NXP Semiconductors)

Part Number Description
MCZ33811 Solenoid Monitor Integrated Circuit
MCZ33812AEK Multifunctional Ignition and Injector Driver
MCZ33812EK Multifunctional Ignition and Injector Driver
MCZ33800 Engine Control Integrated Circuit
MCZ33800 Engine Control Integrated Circuit

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

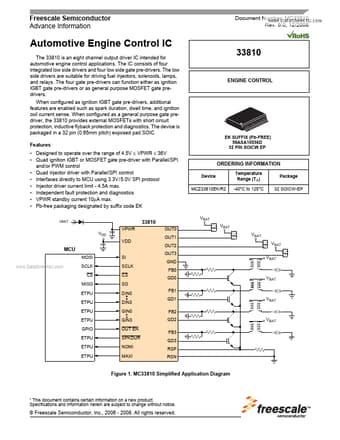

Freescale Semiconductor Advance Information Document Number: MC33810 Rev. 6.0, 12/2008 Automotive Engine Control IC The 33810 is an eight channel output driver IC intended for automotive engine control applications. The IC consists of four integrated low side drivers and four low side gate pre-drivers. The low side drivers are suitable for driving fuel injectors, solenoids, lamps, and relays. The four gate pre-drivers can function either as ignition IGBT gate pre-drivers or as general purpose MOSFET gate predrivers. When configured as ignition IGBT gate pre-drivers, additional features are enabled such as spark duration, dwell time, and ignition coil current sense.
