MC9S08SH32, MC9S08SH16 - HCS08 Microcontroller

Freescale Semiconductor

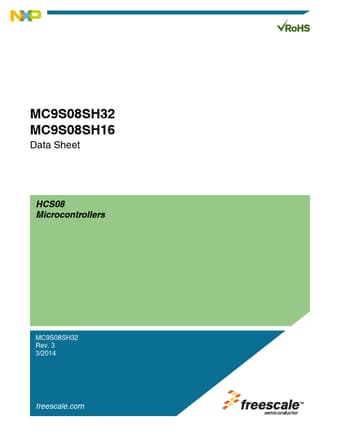

The MC9S08SH32 by Freescale Semiconductor is a HCS08 Microcontroller. Below is the official datasheet preview.

📥 Download Datasheet

MC9S08SH32 HCS08 Microcontroller by Freescale Semiconductor - Datasheet Preview — Official preview page of the **MC9S08SH32** HCS08 Microcontroller datasheet (Freescale Semiconductor).

Datasheet Details

Part number	MC9S08SH32, MC9S08SH16
Manufacturer	Freescale Semiconductor
File Size	2.23 MB
Description	HCS08 Microcontroller
Datasheet	MC9S08SH16_FreescaleSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MC9S08SH32, MC9S08SH16. Please refer to the document for exact specifications by model.
Additional preview pages of the MC9S08SH32 datasheet.

MC9S08SH32 Product details

Description

of Changes Updated The ACMP and TPM modules to version 3 and made numerous revisions to the Electricals.Updated device numbering scheme.Updated some electricals and made some minor grammatical/formatting revisions.Corrected the SPI block module version.Removed incorrect ADC temperature sensor value from the

Features

8-Bit HCS08 Central Processor Unit (CPU).
40-MHz HCS08 CPU (central processor unit).
HC08 instruction set with added BGND instruction.
Support for up to 32 interrupt/reset sources On-Chip Memory.
FLASH read/program/erase over full operating voltage and temperature.
Random-access memory (RAM).
Security circuitry to prevent unauthorized access to RAM and FLASH contents Power-Saving Modes.
Two very low power stop modes.
Reduce.
