MC9S08SG32, MC9S08SG16 - (MC9S08SG16 / MC9S08SG32) HCS08 Microcontrollers

Freescale Semiconductor

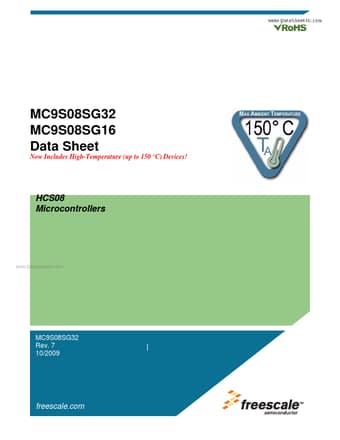

The MC9S08SG32 by Freescale Semiconductor is a (MC9S08SG16 / MC9S08SG32) HCS08 Microcontrollers. Below is the official datasheet preview.

Datasheet Details

Part number	MC9S08SG32, MC9S08SG16
Manufacturer	Freescale Semiconductor
File Size	3.51 MB
Description	(MC9S08SG16 / MC9S08SG32) HCS08 Microcontrollers
Datasheet	MC9S08SG16_FreescaleSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MC9S08SG32, MC9S08SG16. Please refer to the document for exact specifications by model.
Additional preview pages of the MC9S08SG32 datasheet.

of Changes Updated the TPM module, incorporated minor revisions for the Tj, PTxSE slew rate, FPROT and Appendix B packaging information.

8-Bit HCS08 Central Processor Unit (CPU).
40-MHz HCS08 CPU (central processor unit).
36-MHz HCS08 CPU for temperatures greater than 125 °C.
HC08 instruction set with added BGND instruction.
Support for up to 32 interrupt/reset sources address and event-only data. Debug module supports both tag and force breakpoints Peripherals.
ADC.
16-channel, 10-bit resolution, 2.5 μs conversion time, automatic compare function, temperature sensor, interna.
