MC9RS08KA1 - (MC9RS08KA1 / MC9RS08KA2) Microcontrollers

Product Overview

Freescale Semiconductor

Datasheet Details

Part number	MC9RS08KA1
Manufacturer	Freescale Semiconductor
File Size	731.01 KB
Description	(MC9RS08KA1 / MC9RS08KA2) Microcontrollers
Datasheet	MC9RS08KA1 Datasheet
Additional preview pages of the MC9RS08KA1 datasheet.

Product details

Description

of Changes This product incorporates SuperFlash® technology licensed from SST.Freescale‚ and the Freescale logo are trademarks of Freescale Semiconductor, Inc.© Freescale Semiconductor, Inc., 2006. All rights reserved.MC9RS08KA2 Series Data Sheet, Rev.2 6 Freescale Semiconductor List of Chapters Chapter 1 Chapter 2 Chapter 3 Chapter 4 Chapter 5 Chapter 6 Chapter 7 Chapter 8 Chapter 9 Chapter 10 Chapter 11 Chapter 12 Appendix A Appendix B MC9RS08KA2 Series Device Overview 15 Pins and Con

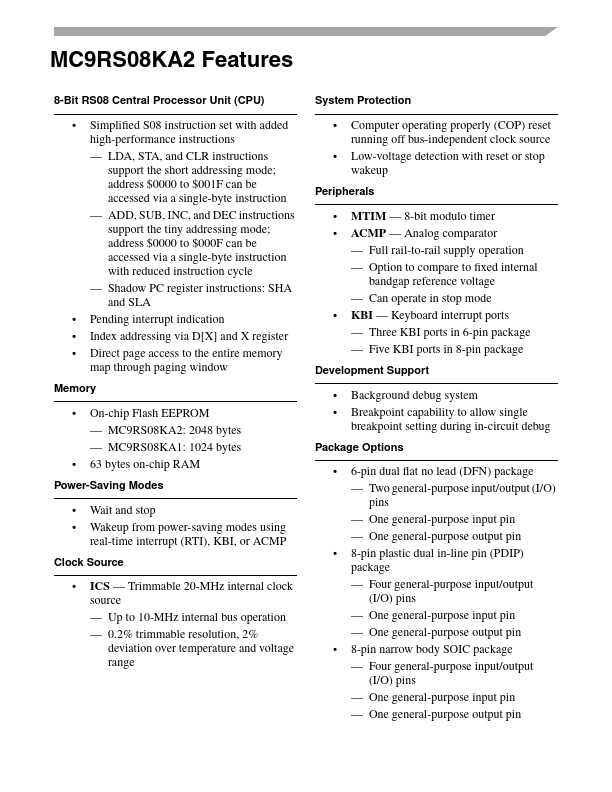

Features

8-Bit RS08 Central Processor Unit (CPU) System Protection.
Simpliﬁed S08 instruction set with added high-performance instructions.
LDA, STA, and CLR instructions support the short addressing mode; address $0000 to $001F can be accessed via a single-byte instruction.
ADD, SUB, INC, and DEC instructions support the tiny addressing mode; address $0000 to $000F can be accessed via a single-byte instruction with reduced instruction cycle.
