MC07XSF517 - Triple 7.0 mOhm and Dual 17 mOhm High Side Switch

Description

and Application Information 13 5.1 Introduction

.

Features

  • Triple 7.0 m and dual 17 m high side switches with high transient current capability.
  • 16-bit 5.0 MHz SPI control of overcurrent profiles, channel control including PWM duty-cycles, output-ON and -OFF OpenLoad detections, thermal shut-down and prewarning, and fault reporting.
  • Output current monitoring with programmable synchronization signal and supply voltage feedback.
  • Limp Home mode.
  • External smart power switch control.
  • Operating voltage.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MC07XS3200 Dual high-side switch NXP
MC07XS6517BEK high-side switche NXP
MC07XS6517DEK high-side switche NXP
MC074 Microcouplers Micropac Industries
MC0063W06030R Thick Film Chip Resistor Multicomp

Other Datasheets by Freescale Semiconductor (now NXP Semiconductors)

Part Number Description
MC07XSC200 Dual High Side Switch
MC06XSD200 Dual 6.0 mOhm High Side Switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

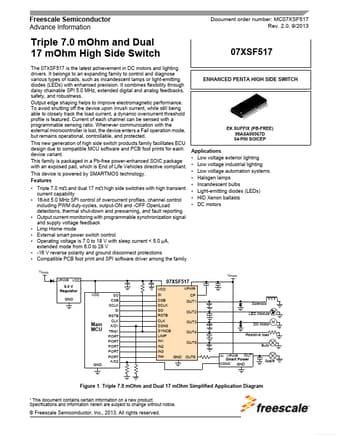

Freescale Semiconductor Advance Information Document order number: MC07XSF517 Rev. 2.0, 9/2013 Triple 7.0 mOhm and Dual 17 mOhm High Side Switch The 07XSF517 is the latest achievement in DC motors and lighting drivers. It belongs to an expanding family to control and diagnose various types of loads, such as incandescent lamps or light-emitting diodes (LEDs) with enhanced precision. It combines flexibility through daisy chainable SPI 5.0 MHz, extended digital and analog feedbacks, safety, and robustness. Output edge shaping helps to improve electromagnetic performance. To avoid shutting off the device upon inrush current, while still being able to closely track the load current, a dynamic overcurrent threshold profile is featured.
Published: |
