MC06XSD200 - Dual 6.0 mOhm High Side Switch

Description

.

.

.

.

Features

  • Normal operating range: 8.0 - 36 V, extended range: 6.0 - 58 V, 3.3 V and 5.0 V compatible 16-bit SPI port for device control, configuration, and diagnostics at rates up to 8.0 MHz.
  • Two fully-protected 6.0 m (@ 25 °C) high side switches.
  • Up to 9.0 A steady-state current per channel.
  • Separate bulb and DC motor latched overcurrent handling.
  • Parallel output operating mode with improved switching synchronization.
  • Individually programmable inter.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MC0603 THICK FILM CHIP RESISTOR RCD
MC0603 Thick Film Chip Resistor Multicomp
MC0603WG00000T5E-TC Thick Film Chip Resistor Multicomp
MC0603WG00000T5E-TR Thick Film Chip Resistor Multicomp
MC0603WGF1003T5E-TR Thick Film Chip Resistor Multicomp

Other Datasheets by Freescale Semiconductor (now NXP Semiconductors)

Part Number Description
MC07XSC200 Dual High Side Switch
MC07XSF517 Triple 7.0 mOhm and Dual 17 mOhm High Side Switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

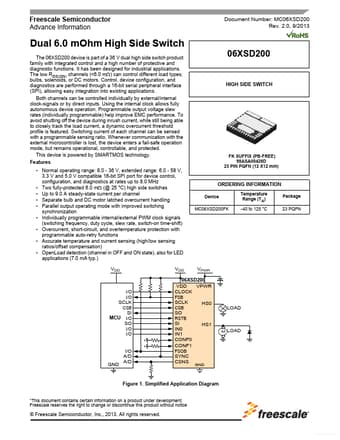

Freescale Semiconductor Advance Information Document Number: MC06XSD200 Rev. 2.0, 9/2013 Dual 6.0 mOhm High Side Switch The 06XSD200 device is part of a 36 V dual high side switch product family with integrated control and a high number of protective and diagnostic functions. It has been designed for industrial applications. The low RDS(ON) channels (<6.0 m) can control different load types; bulbs, solenoids, or DC motors. Control, device configuration, and diagnostics are performed through a 16-bit serial peripheral interface (SPI), allowing easy integration into existing applications. Both channels can be controlled individually by external/internal clock-signals or by direct inputs. Using the internal clock allows fully autonomous device operation.
