DI01-04A Datasheet (FranMar) - 1Watt Dual Separate Output DC-DC Converter

DI01-04A, 1Watt Dual Separate Output DC-DC Converter

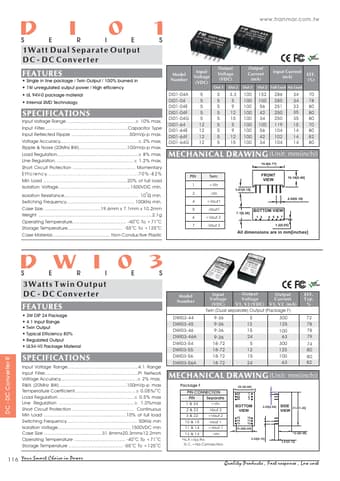

DI01 www.franmar.com.tw SERIES 1Watt Dual Separate Output DC - DC Converter Single in line package / Twin Output / 100% burned in 1W unregulated output power / High efficiency UL 94V-0 package material Internal SMD Technology Input Voltage Range ± 10% max.

Input FilterCapacitor Type Input Reflected Ripple 50mVp-p max.

Voltage Accuracy± 2% max.

Ripple & Noise (20MHz BW)100mVp-p max.

Load Regulation± 8% max.

Line Regulation.

± 1.2% max.

Short Circuit Protection Moment
