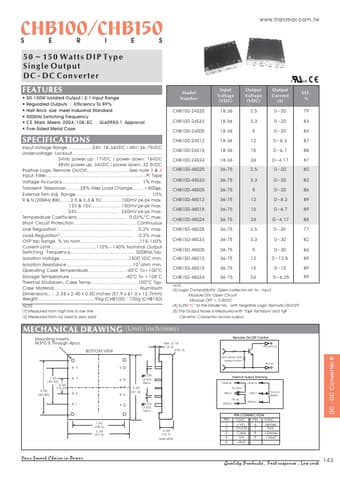

CHB100/CHB150
50~150 Watts DIP Type Single Output DC - DC Converter
◆ 50-150W Isolated Output / 2:1 Input Range ◆ Regulated Outputs / Efficiency To 89% ◆ Half-Brick size meet Industrial Standard ◆ 500KHz Switching Frequency ◆ CE Mark Meets 2004/108/EC ; UL60950-1 Approval ◆ Five-Sided Metal Case
Input Voltage Range.................24V: 18-36VDC / 48V: 36-75VDC Undervoltage Lockout.............................................................
24Vin power up: 17VDC / power down: 16VDC 48Vin power up: 34VDC / power down: 32.5VDC Positive Logic Remote On/Off.............................See note 3 & 4 Input Filter....................................................................PI Type Voltage Accuracy.................................................... 1% max. Transient Response..........
