FD6288Q - 3-PHASE BRIDGE DRIVER

This page provides the datasheet information for the FD6288Q, a member of the FD6288T 3-PHASE BRIDGE DRIVER family.

Datasheet Summary

Description

FD6288T&Q is an integrated three-span half-bridge gate driver IC designed for high voltage, high speed drive MOSFETs that operate up to +250V.

The special HVIC technology can realize stable monolithic structure.

Features

  • Fully operational to +250V.
  • Gate driver supply range from 5V to 20V.
  • Independent Three half-bridge drivers.
  • 3.3V/5V logic input compatible.
  • Undervoltage lockout for all channels.
  • Cross-conduction prevention logic.
  • Internal set dead-time.
  • Matched propagation delay for both channels.
  • Outputs in phase with inputs.
  • RoHS compliant.

📥 Download Datasheet

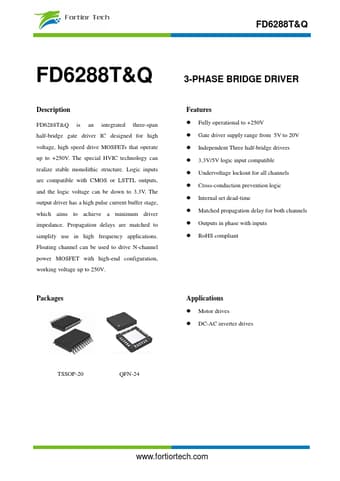

Datasheet preview – FD6288Q

Datasheet Details

Part number FD6288Q
Manufacturer Fortior
File Size 652.57 KB
Description 3-PHASE BRIDGE DRIVER
Datasheet download datasheet FD6288Q Datasheet
Additional preview pages of the FD6288Q datasheet.

📁 Similar Datasheet

Other Datasheets by Fortior
  • FD6288 - 3-PHASE BRIDGE DRIVER
  • FD6288T - 3-PHASE BRIDGE DRIVER
  • FD6287T - Three-phase 250V gate driver
  • FD6187T - Three-phase 180V gate driver

Full PDF Text Transcription

Click to expand full text
FD6288T&Q FD6288T&Q Description FD6288T&Q is an integrated three-span half-bridge gate driver IC designed for high voltage, high speed drive MOSFETs that operate up to +250V. The special HVIC technology can realize stable monolithic structure. Logic inputs are compatible with CMOS or LSTTL outputs, and the logic voltage can be down to 3.3V. The output driver has a high pulse current buffer stage, which aims to achieve a minimum driver impedance. Propagation delays are matched to simplify use in high frequency applications. Floating channel can be used to drive N-channel power MOSFET with high-end configuration, working voltage up to 250V.
Published: |
