ZTB-A - Low Frequecy (KHz) Ceramic Resonators

Features

  • Small and Light High Durability Good Temperature Stability Low Cost.

📥 Download Datasheet

Datasheet Details

Part number ZTB-A
Manufacturer Fortiming
File Size 193.53 KB
Description Low Frequecy (KHz) Ceramic Resonators
Datasheet download datasheet ZTB-A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ZTB ZTB Series KHz-Band Ceramic Resonator Vanlong Technology
ZTB1.23MJ CERAMIC RESONATOR ECS
ZTB1000 Surface Mountable Resonators Token
ZTB1000J Ceramic Resonators Token
ZTB1000J Through Hole Ceramic Resonators US Electronics

Other Datasheets by Fortiming

Part Number Description
ZTB-B Low Frequecy (KHz) Ceramic Resonators
ZTB-C Low Frequecy (KHz) Ceramic Resonators
ZTB-D Low Frequecy (KHz) Ceramic Resonators
ZTB-E Low Frequecy (KHz) Ceramic Resonators
ZTB-F Low Frequecy (KHz) Ceramic Resonators

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

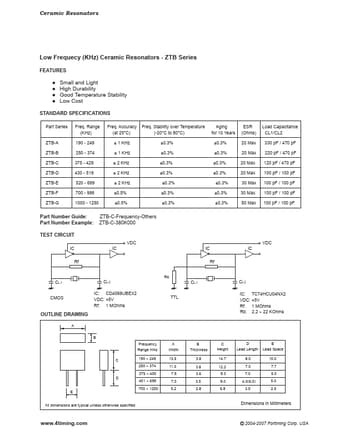

Ceramic Resonators Low Frequecy (KHz) Ceramic Resonators - ZTB Series FEATURES Small and Light High Durability Good Temperature Stability Low Cost STANDARD SPECIFICATIONS Part Series ZTB-A ZTB-B ZTB-C ZTB-D ZTB-E ZTB-F ZTB-G Freq. Range (KHz) 190 - 249 250 - 374 375 - 429 430 - 519 520 - 699 700 - 999 1000 - 1250 Freq. Accuracy Freq. Stability over Temperature (at 25°C) (-20°C to 80°C) ± 1 KHz ±0.3% ± 1 KHz ±0.3% ± 2 KHz ±0.3% ± 2 KHz ±0.3% ± 2 KHz ±0.3% ±0.5% ±0.3% ±0.5% ±0.3% Aging ESR Load Capacitance for 10 Years (Ohms) CL1/CL2 ±0.3% 20 Max 330 pF / 470 pF ±0.3% 20 Max 220 pF / 470 pF ±0.3% 20 Max 120 pF / 470 pF ±0.3% 20 Max 100 pF / 100 pF ±0.3% 30 Max 100 pF / 100 pF ±0.3% 30 Max 100 pF / 100 pF ±0.
