MBR60100WT, MBR6040WT - Power Schottky Barrier Rectifier

Name: MBR60100WT
SKU: MBR60100WT-1587289

Formosa MS

The MBR60100WT by Formosa MS is a Power Schottky Barrier Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	MBR60100WT, MBR6040WT
Manufacturer	Formosa MS
File Size	118.37 KB
Description	Power Schottky Barrier Rectifier
Datasheet	MBR6040WT-FormosaMS.pdf
Note	This datasheet PDF includes multiple part numbers: MBR60100WT, MBR6040WT. Please refer to the document for exact specifications by model.
Additional preview pages of the MBR60100WT datasheet.

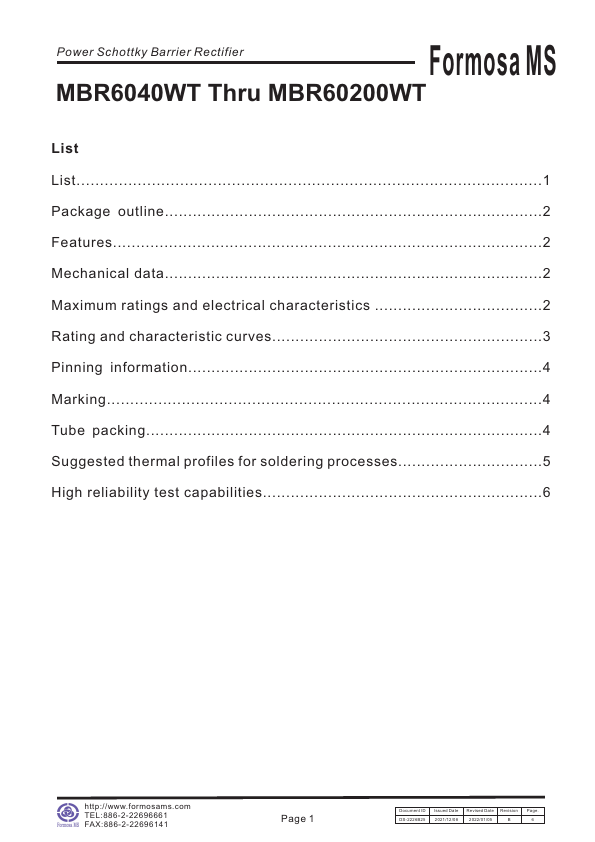

Mechanical data2 Maximum ratings and electrical characteristics 2 Rating and characteristic curves3 Pinning information4 Marking4 Tube packing4 Suggested thermal profiles for soldering processes5 High reliability test capabilities6 http://www. formosams. com TEL:886-2-22696661 FAX:886-2-22696141 Page 1 Document ID DS-2226B25 Issued Date 2021/12/08 Revised Date Revision 2022/01/05 B Page. 6 Power Schottky Barrier Rectifier Formosa MS MBR6040WT Thru MBR60200WT 60Amp Power Schottky Barri.
