LL4448 - Glass Sealed SMD Switching Diode

Name: LL4448
SKU: LL4448-1590465

Formosa MS

The LL4448 by Formosa MS is a Glass Sealed SMD Switching Diode. Below is the official datasheet preview.

Datasheet Details

Part number	LL4448
Manufacturer	Formosa MS
File Size	249.28 KB
Description	Glass Sealed SMD Switching Diode
Datasheet	LL4448-FormosaMS.pdf
Additional preview pages of the LL4448 datasheet.

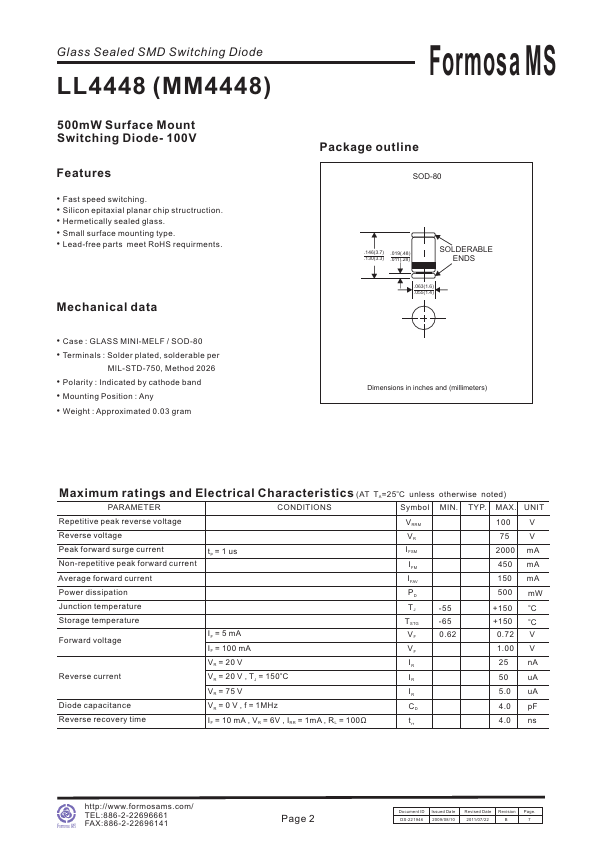

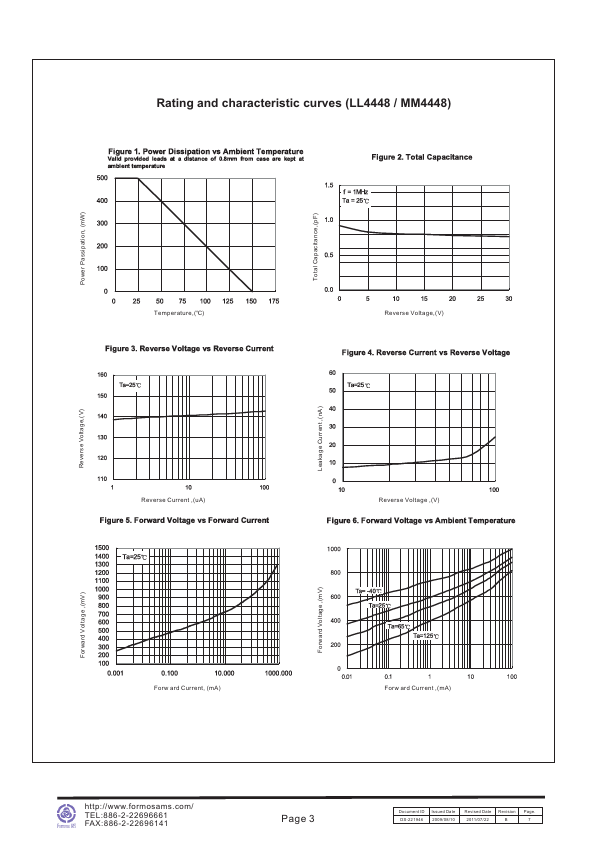

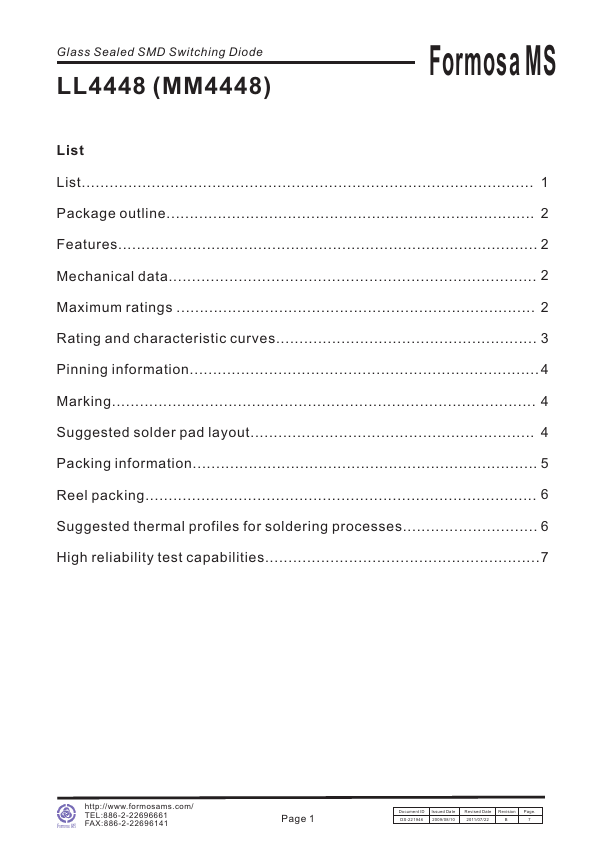

2 Mechanical data 2 Maximum ratings 2 Rating and characteristic curves 3 Pinning information4 Marking 4 Suggested solder pad layout 4 Packing information 5 Reel packing 6 Suggested thermal profiles for soldering processes 6 High reliability test capabilities7 http://www. formosams. com/ TEL:886-2-22696661 FAX:886-2-22696141 Page 1 Document ID Issued Date DS-221946 2009/08/10 Revised Date Revision 2011/07/22 B Page. 7 Glass Sealed SMD Switching Diode LL4448 (MM4448) 500mW Surface Mount Swi.
