FSM101 - MELF Silicon Rectifier

Formosa MS

FSM101 Description

MELF Silicon Rectifier FSM101 THRU FSM106 Fast recovery type .

FSM101 Applications

* Exceeds environmental standards of MIL-S-19500 / 228 Low leakage current. Formosa MS SM-1 .205(5.2) .024(.60) .190(4.8) .018(.46) SOLDERABLE ENDS .105(2.7) .095(2.4) Mechanical data Case : Molded plastic, SM-1 (MELF) Terminals : Solder plated, solderable per MIL-STD-750, Method 2026 Polarity

📥 Download Datasheet

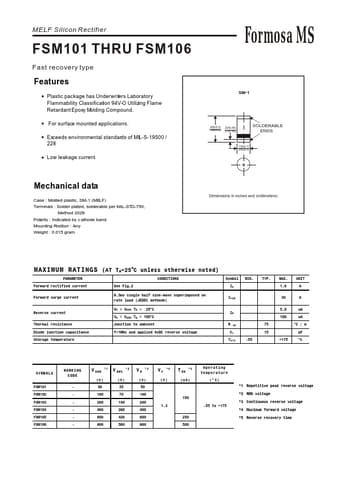

FSM101 Datasheet Preview — Preview of FSM101 PDF

Datasheet Details

Part number: FSM101
Manufacturer: Formosa MS
File Size: 63.15 KB
Datasheet: FSM101-FormosaMS.pdf
Description: MELF Silicon Rectifier
