DI105 - (DI101 - DI107) SINGLE PHASE 1.0 AMP BRIDGE RECTIFIERS

Features

  • Ideal for printed circuit board.
  • Reliable low cost construction utilizing molded plastic technique.
  • High surge current capability.
  • Polarity: marked on body.
  • Mounting position: Any.
  • Weight: 1.0 grams .255(6.5) .245(6.2) ~ ~ .350(8.9) .300(7.6) .365(9.3) .355(9.0) .135(3.4) .115(2.9) .020 (0.5) .165(4.2) .155(3.9) .060 1.5 .205(5.2) .195(5.0) Dimensions in inches and (millimeters).

📥 Download Datasheet

Datasheet Details

Part number DI105
Manufacturer Formosa MS
File Size 119.34 KB
Description (DI101 - DI107) SINGLE PHASE 1.0 AMP BRIDGE RECTIFIERS
Datasheet download datasheet DI105 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DI100 DUAL-IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER Pan Jit International Inc.
DI100 DUAL-IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER TRSYS
DI101 DUAL-IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER Pan Jit International Inc.
DI101 DUAL-IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER TRSYS
DI1010 DUAL-IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER Pan Jit International Inc.

Other Datasheets by Formosa MS

Part Number Description
DI101 (DI101 - DI107) SINGLE PHASE 1.0 AMP BRIDGE RECTIFIERS
DI102 (DI101 - DI107) SINGLE PHASE 1.0 AMP BRIDGE RECTIFIERS
DI103 (DI101 - DI107) SINGLE PHASE 1.0 AMP BRIDGE RECTIFIERS
DI104 (DI101 - DI107) SINGLE PHASE 1.0 AMP BRIDGE RECTIFIERS
DI106 (DI101 - DI107) SINGLE PHASE 1.0 AMP BRIDGE RECTIFIERS

Full PDF Text Transcription

Click to expand full text

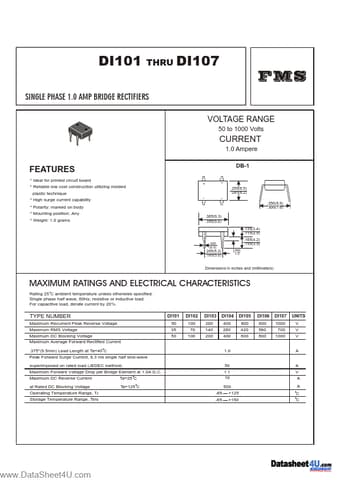

( DataSheet : www.DataSheet4U.com ) DI101 THRU DI107 SINGLE PHASE 1.0 AMP BRIDGE RECTIFIERS VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.0 Ampere DB-1 + FEATURES * Ideal for printed circuit board * Reliable low cost construction utilizing molded plastic technique * High surge current capability * Polarity: marked on body * Mounting position: Any * Weight: 1.0 grams .255(6.5) .245(6.2) ~ ~ .350(8.9) .300(7.6) .365(9.3) .355(9.0) .135(3.4) .115(2.9) .020 (0.5) .165(4.2) .155(3.9) .060 1.5 .205(5.2) .195(5.0) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
