DI103 - (DI101 - DI107) SINGLE PHASE 1.0 AMP BRIDGE RECTIFIERS

Download the DI103 datasheet PDF (DI105 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for (di101 - di107) single phase 1.0 amp bridge rectifiers.

Features

  • Ideal for printed circuit board.
  • Reliable low cost construction utilizing molded plastic technique.
  • High surge current capability.
  • Polarity: marked on body.
  • Mounting position: Any.
  • Weight: 1.0 grams .255(6.5) .245(6.2) ~ ~ .350(8.9) .300(7.6) .365(9.3) .355(9.0) .135(3.4) .115(2.9) .020 (0.5) .165(4.2) .155(3.9) .060 1.5 .205(5.2) .195(5.0) Dimensions in inches and (millimeters).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DI105_FormosaMS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DI103
Manufacturer Formosa MS
File Size 119.34 KB
Description (DI101 - DI107) SINGLE PHASE 1.0 AMP BRIDGE RECTIFIERS
Datasheet download datasheet DI103 Datasheet

📁 Similar Datasheet

  • DI100 - DUAL-IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (Pan Jit International Inc.)
  • DI100 - DUAL-IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (TRSYS)
  • DI101 - DUAL-IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (Pan Jit International Inc.)
  • DI101 - DUAL-IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (TRSYS)
  • DI1010 - DUAL-IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (Pan Jit International Inc.)
  • DI1010 - DUAL-IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (TRSYS)
  • DI102 - DUAL-IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (Pan Jit International Inc.)
  • DI102 - DUAL-IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (TRSYS)
  • DI104 - DUAL-IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (Pan Jit International Inc.)
  • DI104 - DUAL-IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (TRSYS)
Other Datasheets by Formosa MS
  • DI101 - (DI101 - DI107) SINGLE PHASE 1.0 AMP BRIDGE RECTIFIERS
  • DI102 - (DI101 - DI107) SINGLE PHASE 1.0 AMP BRIDGE RECTIFIERS
  • DI104 - (DI101 - DI107) SINGLE PHASE 1.0 AMP BRIDGE RECTIFIERS
  • DI105 - (DI101 - DI107) SINGLE PHASE 1.0 AMP BRIDGE RECTIFIERS
  • DI106 - (DI101 - DI107) SINGLE PHASE 1.0 AMP BRIDGE RECTIFIERS
  • DI107 - (DI101 - DI107) SINGLE PHASE 1.0 AMP BRIDGE RECTIFIERS

Full PDF Text Transcription

Click to expand full text

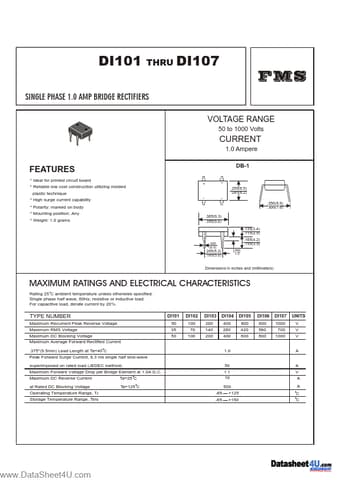

( DataSheet : www.DataSheet4U.com ) DI101 THRU DI107 SINGLE PHASE 1.0 AMP BRIDGE RECTIFIERS VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.0 Ampere DB-1 + FEATURES * Ideal for printed circuit board * Reliable low cost construction utilizing molded plastic technique * High surge current capability * Polarity: marked on body * Mounting position: Any * Weight: 1.0 grams .255(6.5) .245(6.2) ~ ~ .350(8.9) .300(7.6) .365(9.3) .355(9.0) .135(3.4) .115(2.9) .020 (0.5) .165(4.2) .155(3.9) .060 1.5 .205(5.2) .195(5.0) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
