1N4448

The 1N4448 is Switching Diode designed by Formosa MS.

Product Overview

Formosa MS

Part number	1N4448
Manufacturer	Formosa MS
File Size	88.75 KB
Description	Switching Diode
Datasheet	1N4448-FormosaMS.pdf

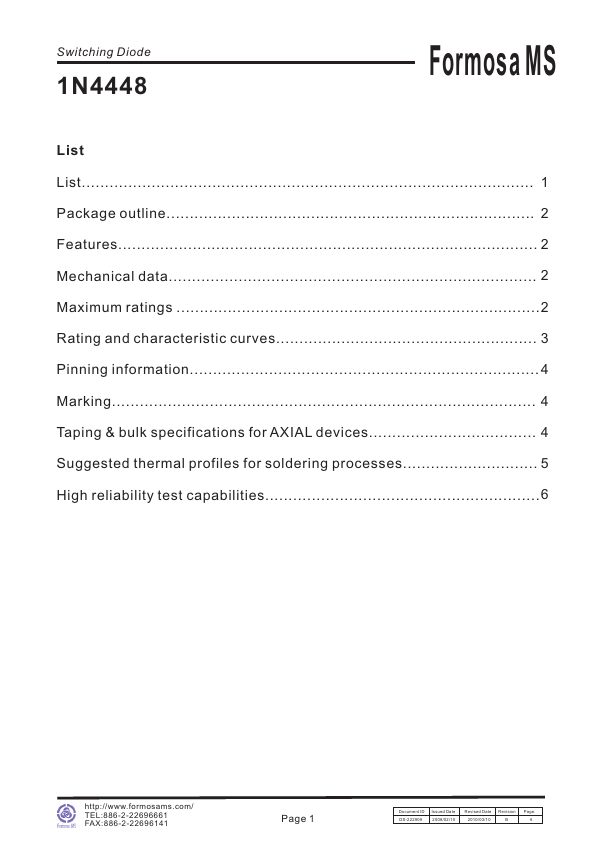

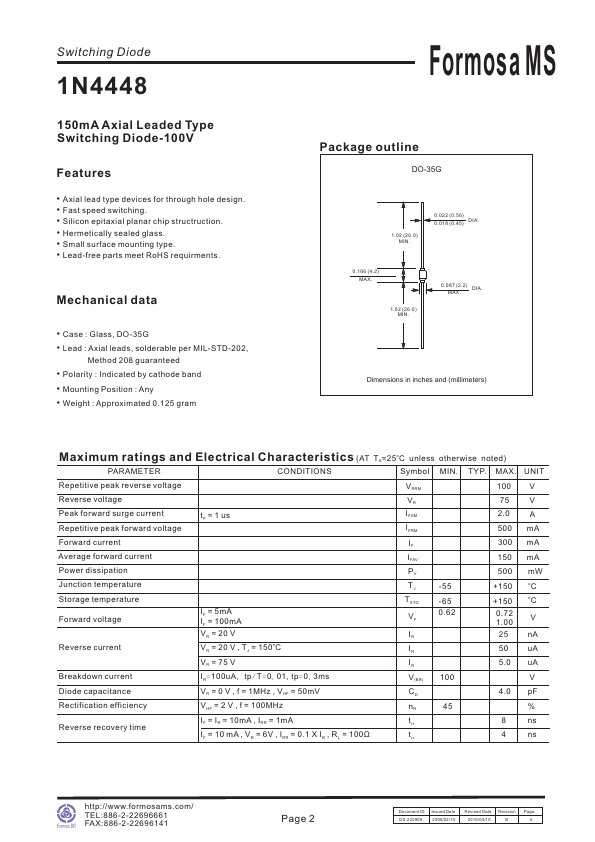

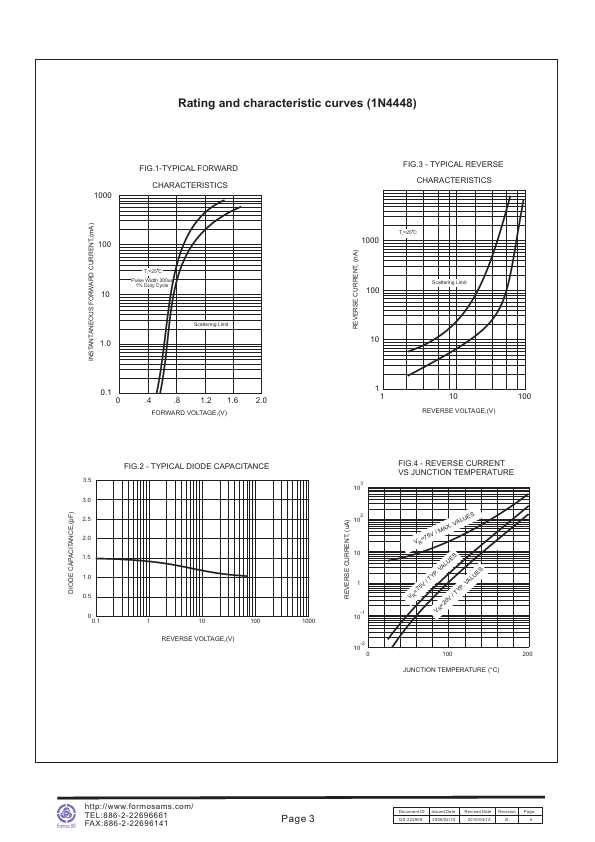

Additional preview pages of the 1N4448 datasheet.

2 Mechanical data 2 Maximum ratings 2 Rating and characteristic curves 3 Pinning information4 Marking 4 Taping & bulk specifications for AXIAL devices 4 Suggested thermal profiles for soldering processes 5 High reliability test capabilities6 http://www. formosams. com/ TEL:886-2-22696661 FAX:886-2-22696141 Page 1 Document ID Issued Date DS-222909 2008/02/10 Revised Date Revision 2010/03/10 B Page. 6 Switching Diode 1N4448 150mA Axial Leaded Type Switching Diode-100V Features.
Axia.
