LB4S - SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

First Silicon

Datasheet Details

Part number	LB4S
Manufacturer	First Silicon
File Size	143.32 KB
Description	SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Datasheet	LB4S-FirstSilicon.pdf

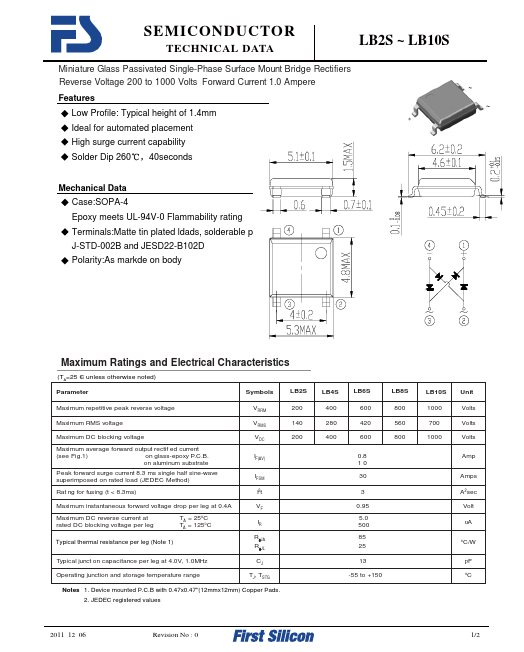

Low Profile: Typical height of 1.4mm Ideal for automated placement High surge current capability Solder Dip 260 40seconds Mechanical Data Case:SOPA-4 Epoxy meets UL-94V-0 Flammability rating Terminals:Matte tin plated ldads, solderable p J-STD-002B and JESD22-B102D Polarity:As markde on body Maximum Ratings and Electrical Characteristics (TA=25 Co unless otherwise noted) Parameter Symbols LB2S Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maxim.
