BZX584B15V - Zener Diode

Download the BZX584B15V datasheet PDF (BZX584B2V4 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for zener diode.

Features

  • High reliability.
  • Very sharp reverse characteristic.
  • Low reverse current level.
  • Zener Voltage 2.4V~36V Mechanical Data.
  • Package: SOD-523.
  • Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102.
  • Polarity: Cathode line denotes the cathode end 1 2 SOD-523 1.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BZX584B2V4-FirstSilicon.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number BZX584B15V
Manufacturer First Silicon
File Size 301.15 KB
Description Zener Diode
Datasheet download datasheet BZX584B15V Datasheet

📁 Similar Datasheet

  • BZX584B15V-C - Surface Mount Zener Diodes (SeCoS)
  • BZX584B15 - Silicon 150 mWatt Zener Diodes (MCC)
  • BZX584B15 - SMD Zener Diode (Taiwan Semiconductor)
  • BZX584B15 - Surface Mount Zener Diodes (GOOD-ARK)
  • BZX584B10 - Silicon 150 mWatt Zener Diodes (MCC)
  • BZX584B10 - SMD Zener Diode (Taiwan Semiconductor)
  • BZX584B10 - Surface Mount Zener Diodes (GOOD-ARK)
  • BZX584B10V-C - Surface Mount Zener Diodes (SeCoS)
  • BZX584B11 - Silicon 150 mWatt Zener Diodes (MCC)
  • BZX584B11 - SMD Zener Diode (Taiwan Semiconductor)
Other Datasheets by First Silicon

Full PDF Text Transcription

Click to expand full text

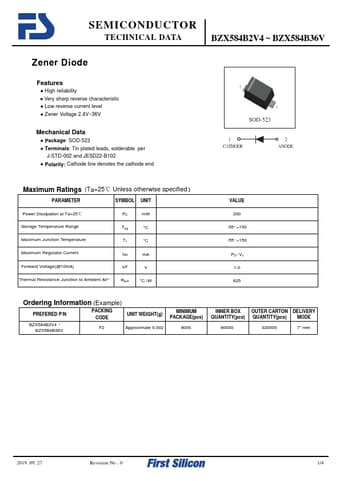

SEMICONDUCTOR TECHNICAL DATA BZX584B2V4 ~ BZX584B36V Zener Diode Features ● High reliability ● Very sharp reverse characteristic ● Low reverse current level ● Zener Voltage 2.4V~36V Mechanical Data ● Package: SOD-523 ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: Cathode line denotes the cathode end 1 2 SOD-523 1 CATHODE 2 ANODE Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Power Dissipation at Ta=25℃ PD mW Storage Temperature Range Maximum Junction Temperature Tstg °C TJ °C Maximum Regulator Current IZM mA Forward Voltage(@10mA) VF V Thermal Resistance Junction to Ambient Air* RθJA °C /W VALUE 200 -55~+150 -55~+150 PD / Vz 1.
