5.0SMCJ11AG - SMD Transient Voltage Suppressor

First Semiconductor

📥 Download Datasheet

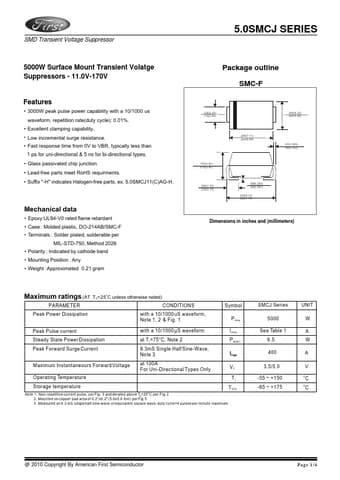

5.0SMCJ11AG Datasheet Preview — Preview of 5.0SMCJ11AG PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	5.0SMCJ11AG
Manufacturer	First Semiconductor
File Size	1.06 MB
Description	SMD Transient Voltage Suppressor
Datasheet	5.0SMCJ11AG-FirstSemiconductor.pdf

5.0SMCJ11AG Product details

Features

3000W peak pulse power capability with a 10/1000 us waveform, repetition rate(duty cycle): 0.01%.
Excellent clamping capability.
Low incremental surge resistance.
Fast response time from 0V to VBR, typically less than 1 ps for uni-directional & 5 ns for bi-directional types.
Glass passivated chip junction.
Lead-free parts meet RoHS requirments.
Suffix "-H" indicates Halogen-free parts, ex. 5.0SMCJ11(C)AG-H. Mechanical data.
