T24C32A - EEPROM

This page provides the datasheet information for the T24C32A, a member of the T24C32A-First EEPROM family.

Description

The T24C32A/T24C64A provides 32,768/65,536 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 4096/8192 words of 8 bits each.

Features

  • Wide Voltage Operation - VCC = 1.8V to 5.5V.
  • Operating Ambient Temperature: -40℃ to +85℃.
  • Internally Organized: - T24C32A, 4096 X 8 (32K bits) - T24C64A, 8192 X 8 (64K bits).
  • Two-wire Serial Interface.
  • Schmitt Trigger, Filtered Inputs for Noise Suppression.
  • Bidirectional Data Transfer Protocol.
  • 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V) Compatibility.
  • Write Protect Pin for Hardware Data Protection.
  • 32-byte Page (32K, 64K) Write Modes.
  • Partial Page.

📥 Download Datasheet

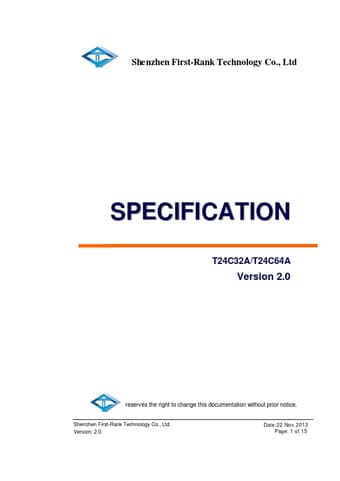

Datasheet preview – T24C32A

Datasheet Details

Part number T24C32A
Manufacturer First-Rank Technology
File Size 1.53 MB
Description EEPROM
Datasheet download datasheet T24C32A Datasheet
Additional preview pages of the T24C32A datasheet.

📁 Similar Datasheet

Other Datasheets by First-Rank Technology

Full PDF Text Transcription

Click to expand full text
Shenzhen First-Rank Technology Co., Ltd SPECIFICATION T24C32A/T24C64A Version 2.0 reserves the right to change this documentation without prior notice. Shenzhen First-Rank Technology Co., Ltd Version: 2.0 Date:22.Nov.2013 Page: 1 of 15 Tel:86-755-2666 3145 Website: www.fs-rank.com/ Fax:86-755-8345 252 ________________________________________________________________________________________________ ▉Features ● Wide Voltage Operation - VCC = 1.8V to 5.5V ● Operating Ambient Temperature: -40℃ to +85℃ ● Internally Organized: - T24C32A, 4096 X 8 (32K bits) - T24C64A, 8192 X 8 (64K bits) ● Two-wire Serial Interface ● Schmitt Trigger, Filtered Inputs for Noise Suppression ● Bidirectional Data Transfer Protocol ● 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.
